DESCRIPTION
XCITE® Hydraulic Driven Generators 4 – 15 kWatts.
Need AC power but don’t have the room for a PTO shaft driven generator? Vanair XCITE Generator 4–15kWatts provides you with up to 15kW of AC power with the flexibility to mount it anywhere on the chassis. Ideally suited for trucks with hydraulics already installed on them, Vanair’s hydraulic generators are well suited for applications such as: plastic pipe fusion, night lighting, and pipeline relining equipment.

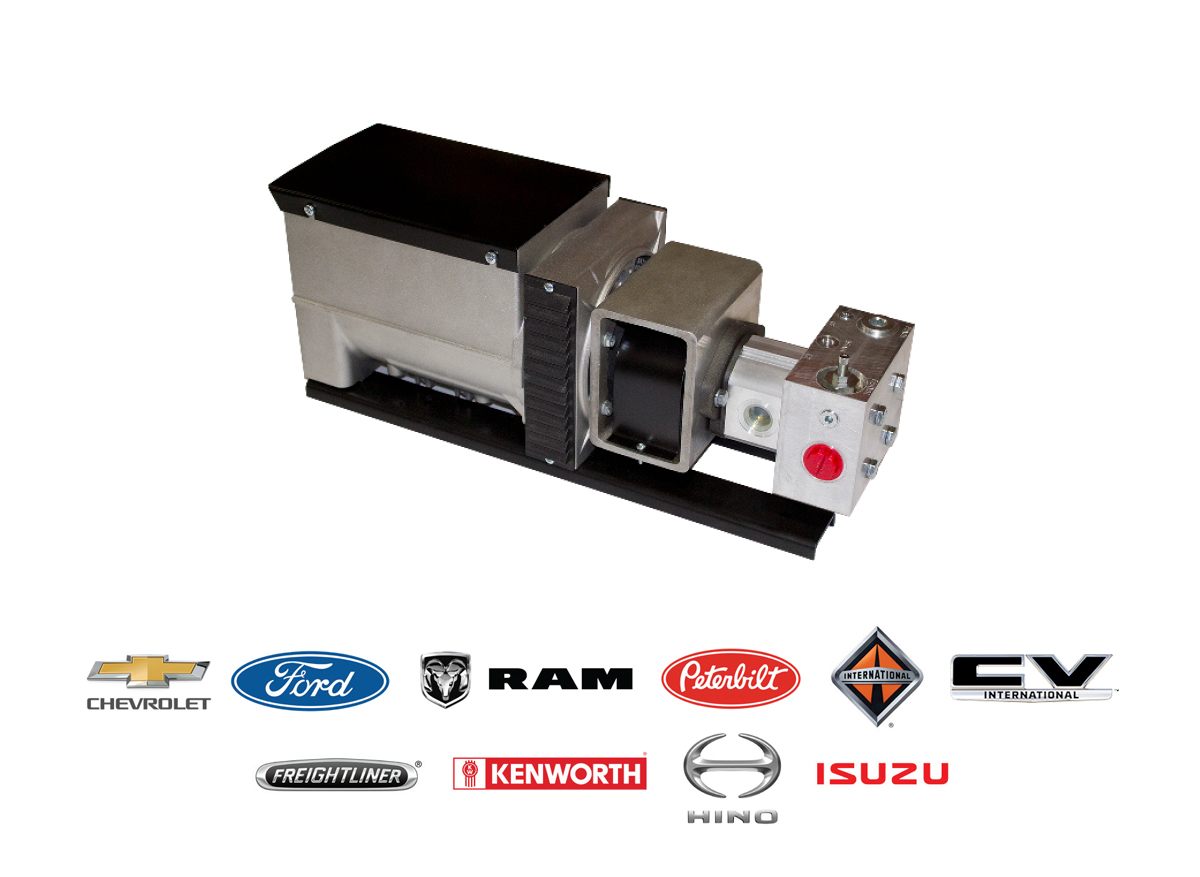

Vanair XCITE Generator 4–15kWatts
Product Specifications:
kW 4 7.5 8.5 10 12 15
Voltage 120 or 120/240 120 or 120/240 120 or 120/240 120 or 120/240 120 or 120/240 120 or 120/240
Phase Single Single Single Single Single Single
AMPs 33/16 62/31 72/36 84/42 105/52.5 126/63
Hydraulic Flow (GPM) 8.5 14.5 16 19 20 24
Pressure (PSI) 1800 1800 1800 2000 2000 2000
Weight (Lbs.) 78 105 114 121 129 141
4kw, 7.5 kw and 8.5 kw available for Ford models.
Please consult Vanair® for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Special Features:
The hydraulic powered Generator is much simpler to operate than engine-driven counterparts. There is no need to replace the chassis alternator or add extra batteries similar to dynamic and static inverter
applications.
Generates real AC power – not simulated or converted power – in capacities from 4,000 to 20,000 WATTS
Offers both 120-volt and 240-volt outlets
Precise frequency controls keep output regulated within two percent
Safety Equipment
Built-in over speed protection
Ground fault interrupter circuit
Built-in short circuit protection
Quality Features
Maintenance-free design
Brushless design
400% motor starting capabilities
Lifetime lubricated bearings
Quiet operation
Hydraulic Features
Pressure compensating flow regulator
Lifetime guaranteed alignment
Operates on open- or closed-loop system up to 2500 PSI
ABOUT VANAIR
From Vanair’s Website:
“Since 1972 Vanair® has worked toward one goal – being the industry leader in Mobile Power Solutions®. During that time, it has been an honor to collaborate with a multitude of companies to engineer products that deliver a true performance edge. Today, from our facilities in Michigan City, Indiana, Vanair® offers the world’s most comprehensive product line of mobile power solutions:
- Vehicle-Mounted Air Compressors
- Generators
- Welders
- Hydraulics
- Electrified Power Equipment®
- Chargers/ Boosters
- Engine Starters
- Custom Mobile Power Equipment
An Innovative Idea in Mobile Power Solutions®
Vanair® began with an idea to do it better. In 1972, Vanair® Manufacturing began as Sullair PTO®, a division of Sullair® Corporation. It was there that a new product and industry were born. The product was the vehicle-mounted 185 CFM underdeck rotary screw air compressor. Its revolutionary design integrated the components of a tow behind rotary screw compressor onto a truck vehicle’s frame and utilized the truck’s engine to drive the compressor via the power takeoff (PTO). This innovative mobile power system eliminated the need for a separate engine driven, tow behind compressor. The advantages quickly impacted the mobile power industry by freeing up the vehicle’s hitch, saving weight, increasing valuable bed space, reducing maintenance and insurance costs, and increasing mobility. That engineering-focus and innovative spirit continues today and has led to multiple Vanair® exclusive Mobile Power Solutions®.
The Future of Mobile Power Solutions®
Vanair® has a straightforward goal– to be your Mobile Power Solutions® provider. We are an engineering-driven company known for our problem-solving capabilities to exceed expectations, drive uptime, and deliver unparalleled performance. Listening to the marketplace, utilizing our experienced team and extensive facilities, finding solutions to your challenges, providing the products that meet your needs – that’s Vanair®.
Where you need it, when you need it, and how you need it – Vanair’s there.”
