DESCRIPTION
Powerful, and Versatile Vanair Two-Stage Drill Modules Providing Big Air of up to 1350 CFM and 350 PSI. Robustly engineered and field tested, a Vanair® system will meet your challenge day after day. The Vanair Two-Stage Drill Modules are a compact solution to limited space requirements on today’s rigs. Available in a wide range of capacities, Vanair’s two-stage drill modules are designed and built to meet rigorous demands. Vanair’s vast engineering experience, flexibility in design and custom solutions provide you with a one-stop shop for all your air compressor needs.
Product Specifications:

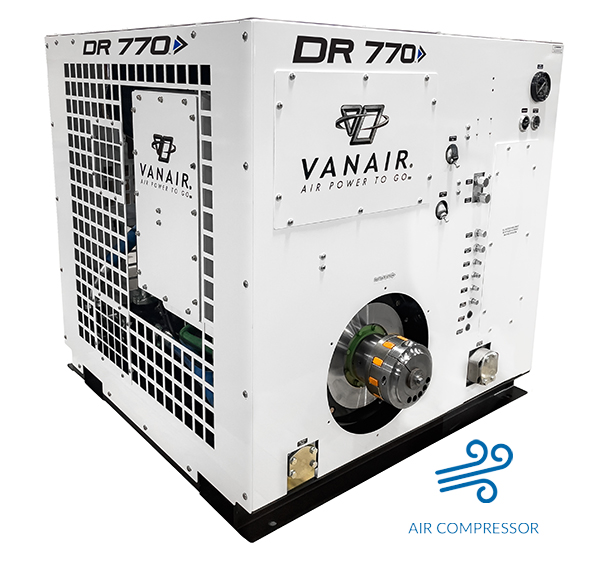

DR 770HP Hydraulic 770 (21.8) @ Up to 350 (24) @ 1800 302 (225) 4310 600 55 x 55 x 55 1397 x 1397 x 1397
DR 900HP Hydraulic 900 (25.6) @ Up to 350 (24) @ 1800 344 (257) 4410 1262 55 x 55 x 55 1397 x 1397 x 1397
DR 1050HP Hydraulic 1050 (29.7) @ Up to 350 (24) @ 1800 463 (345) 4410 1262 55 x 55 x 55 1397 x 1397 x 1397
DR 1050HP Hydraulic 1050 (29.7) @ Up to 350 (24) @ 2100 461 (344) 4410 1262 55 x 55 x 55 1397 x 1397 x 1397
DR 1150HP Hydraulic 1150 (32.6) @ Up to 350 (24) @ 1800 463 (345) 4410 1262 55 x 55 x 55 1397 x 1397 x 1397
DR 1150HP Hydraulic 1150 (32.6) @ Up to 350 (24) @ 2100 461 (344) 4410 1262 55 x 55 x 55 1397 x 1397 x 1397
DR 1250HP Hydraulic 1250 (36.3) @ Up to 350 (24) @ 1800 513 (382) 4410 1262 55 x 55 x 55 1397 x 1397 x 1397
DR 1250HP Hydraulic 1250 (36.4) @ Up to 350 (24) @ 2100 496 (370) 4410 1262 55 x 55 x 55 1397 x 1397 x 1397
DR 1350HP Hydraulic 1350 (38.7) @ Up to 350 (24) @ 1800 556 (414) 4410 1262 55 x 55 x 55 1397 x 1397 x 1397
DR 1350HP Hydraulic 1350 (38.2) @ Up to 350 (24) @ 2100 560 (418) 4410 1262 55 x 55 x 55 1397 x 1397 x 1397
Special Features:
PERFORMANCE
Two-Stage Drill Modules= Up to 1350 CFM Up to 350 PSI
Industry Leading Rotary Screw Air Compressor
Compact Design
Easy to Operate and Maintain
Simple Controls and Piping
Built for Harsh Environments
Made in the USA
AIR COMPRESSOR
Rotary Screw Air Compressor
Two-Stage
Field Proven Performance
Recirculating Valve for Noise Reduction
Discharge Pipe SAE 2.5-Inch Code 61 Flange with Leak-Free Fittings
DISCHARGE TANK
Vertical Design for Smaller Footprint and Better Angle of Operation
In-Tank Coalescer for Longevity
Minimum Pressure Valve
Pressure Relief Valve
Oil Scavenge Sight Glass
Coalescer Restriction Indicator
AIR-TO-OIL COOLER
Ambient Operating Range of -20 °F to +120 °F
AIR FILTER
Dual Two-Stage Air Filters with Dust Evacuators for Clean Air
Air Restriction Indicator
INSTRUMENTATION
Conveniently Located, Easy-to-Read Temperature and Pressure Gauge
Oil Level Sight Glass
SERVICEABILITY
Easily Accessible Air Filters and Coalescers for Routine Service
Independent Separator Tank for Ease of Maintenance
Hinged–Top Roof and Access Panel for Maintenance and Adjustments
Dust Evacuator for Easy Filter Maintenance
SAFETY
High-Temperature Shutdown
Air Pressure Relief Safety Valve
Automatic Blowdown on Shutdown
Oil Fill Plug Safety Relief
Minimum Pressure Valve
CONVENIENCE
Mounting Provisions on the Bottom of the Frame
Heavy Duty Frame with Integral Forklift Tubes
Powder Coated, Galvanneal Sheet Metal Enclosure
