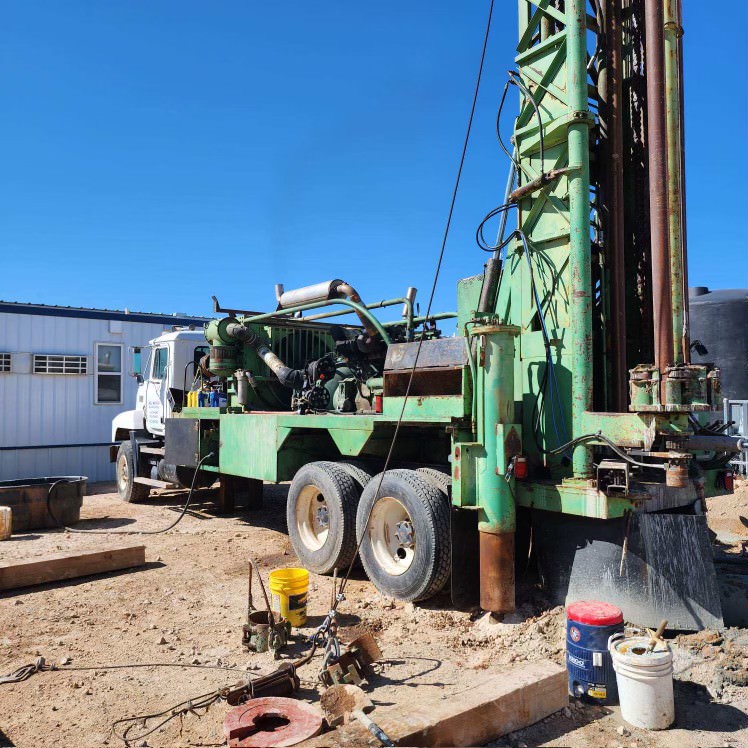

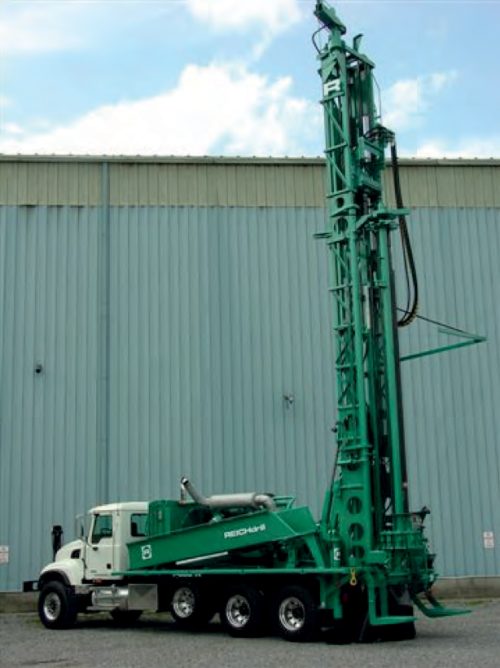

Reichdrill RTD69TW Drilling Rig

View Quotes


For more information on the Reichdrill RTD69TW Drilling Rig, please request a quote.

Dimensions Mast down Mast up
Length m – ft 11,83 – 39 10,98 – 36
Operating width m – ft 2,44 – 8 2,44 – 8
Heigth m – ft 4,09- 13,5 12,35 – 40,6
Total weight Kg – lbs Up to 27 361- 60 320 Up to 27 361- 60 320
MACK Truck
Power kW – hp 377 – 505
Axle Rating kg – lbs Front 9 072 – 20 000
Axle Rating kg – lbs Rear 20 865 – 46 000
Optional Lift Axle Kg – lbs Steerable 9 072 – 20 000
Engine Tier IV Final
Type CAT C15
Power kW – hp 433 – 580
Speed tr/min 1800
Fuel tank volume l – gal 662 – 175
Water tank volume l – gal 454 – 120 Optional Only
Compressor Type Reichdrill, Two Stage Screw, Oil Flooded
Standard – High Pressure 30.3 m^3/min @ 24.1 Bar – 1 070cfm @ 350 psi


RTDrill, originally Reichdrill, is owned by Euroforgroup.

From RTDrill’s Website:

“EUROFORGROUP is more than 40 years of expertise. The French group, which is located in Lyon has decided to complete its industrial division, of which Technidrill (Drilling Equipment Designer and Manufacturer) is already a part, with the purchase of TM Bohrtechnik and Reichdrill.
Armed with this industrial expertise and its business as a distributor of drill rigs machines and equipments (Eurofor, Sahamat and Wamines companies), Euroforgroup makes RTDrill as its brand of drill rigs that benefits from manufacturing, distribution and after sales services throughout the world.

Founded in the late 1940’s, [Reichdrill’s] history dates back to the development of the first hydraulic top-drive rotary drill. REICHdrill is located in Philipsburg, PA just north of State College. The company manufactures a complete line of rotary and DTH equipment for use in the water well, oil and gas exploration, quarrying, construction and mining industries. The company continually drives innovation in the design process leading to the development of technologically advanced drilling equipment. Special focus is given to design improvements that will make the drills more productive and cost-efficient. Our engineers play a key role in the design, production and marketing of the company’s full line of drills. They interact with customers and are often called to drilling sites to solve specific problems. This interaction is invaluable in developing products that meet customer’s needs.
We also maintain a multi-million dollar supply of support equipment and spare parts right in our warehouse in Philipsburg in order to answer to our customers spare parts and service needs quickly.”
