DESCRIPTION

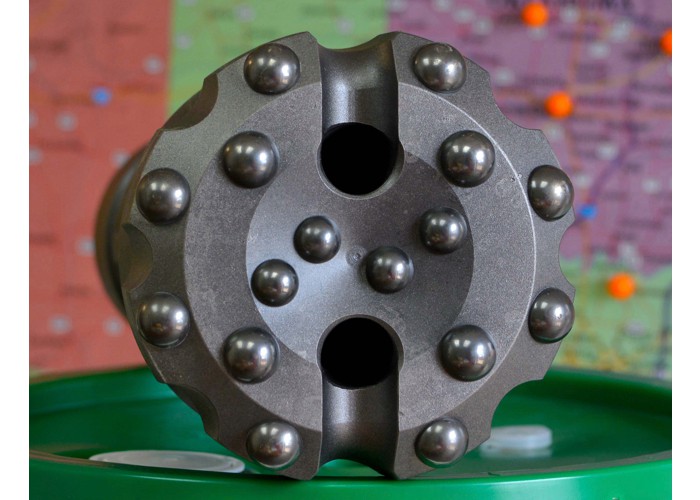

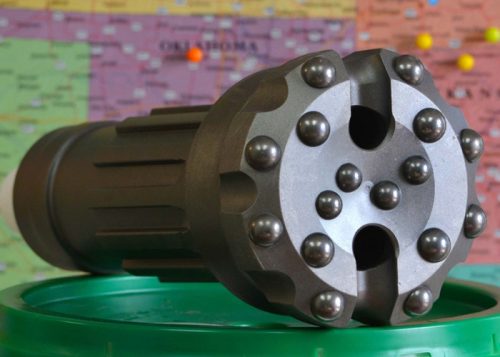

The 6-1/8″ QL60 Concave Bit is an all dome bit manufactured by Mincon. The 6-1/8″ QL60 Concave Bit is an excellent all around bit, suitable for soft and hard formations. The cone shaped face design provides good stability during drilling, allowing for straighter holes while reducing equipment vibration. The carbide configuration gives added penetration in many formations.
| Specifications | Measurement |
|---|---|
| Part Number | 61QL60C58 |
| Minimum Hole Size | 5-7/8″ |
| Number of Splines | 12 |
| Height of Foot Valve Above Strike Face | 2.100″ |
| Length of Shank | 9.97″ |
| Bearing Surface Diameter | 91.72mm |
| Mincon DTH Hammer(s) | 6DH, 6DH-LV, 6BH |
| Diameter | 6-1/8″ |
| Face Type | Concave |
| Outer Button Dia. | (8) 5/8″ buttons |
| Inner Button Dia | (4) 5/8″ buttons |
| Front Button Dia | (4) 5/8″ buttons |
| Flushing Holes | 2 |
| Approx Weight | 51 lbs |
