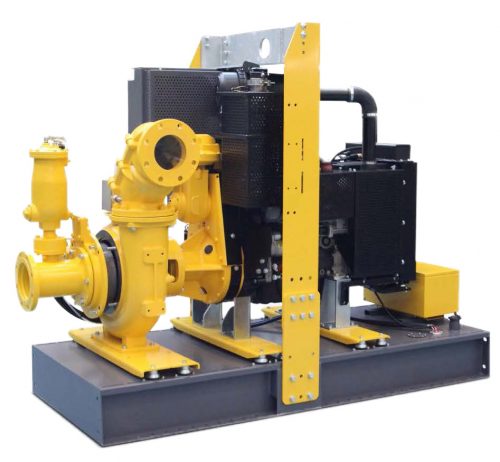

The Atlas Copco PAS 200HF 305 Surface Pump consists of a centrifugal pump and a separator, which enables air to be separated from the liquid and be sucked by a vacuum pump – making automatic priming possible. Even with suction heights of several meters the machine rapidly evacuates the air from the suction pipe and starts to pump. Additionally, thanks to the semi-open impeller, the Atlas Copco PAS 200HF 305 Surface Pump is also suitable for pumping liquids with solids in suspension.
Both Atlas Copco and Varisco have decades of experience in designing and producing pumps. They have put those years of expertise into providing a solutions portfolio that works across multiple applications. The PAS HF (high flow) range is packed with features that not only meet, but exceed the needs of the market. They are focused on an efficient, extremely versatile pump that is suitable for many industries, including construction, general dewatering and emergency applications, such as flood clean up.
|Atlas Copco PAS 200HF 305 Surface Pump|
|Material||S275JR EN 10025-2 carbon steel|
|Coatings||Epoxy powder, average thickness of 80 μm|
|Color||Yellow and grey Atlas Copco (standard)|
|Features||Modular and demountable framework, hot dip galvanised steel skid and
and lifting beam. Mudguards with galvanised steel walkable surface.
Tow bar, adjustable support feet. Lockable battery box. Fuel level
|Battery||Acid charge Pb-Ca maintenance free 12 V – 100 Ah – 400 A|
|Tank||450 l (118.9 USG)|
|Locking Keys||Fuel Cap|
|Qmax||850 m³/h – 14.170 l/min (3,700 USgpm)|
|Hmax||50 m (164 ft)|
|Q max eff.||660 m³/h – 11.000 l/min (2,900 USgpm)|
|Suction Port||Flanged – DIN 200|
|Delivery Port||Flanged – DIN 200|
|Impeller Type||Semi-Open, 2 Vane|
|Solids Handling||76 mm (3.0″)|
ABOUT ATLAS COPCO
Atlas Copco (Copco from Compagnie Pneumatique Commerciale) is a Swedish industrial company that was founded in 1873. It manufactures industrial tools and equipment.
The Atlas Copco Group is a global industrial group of companies headquartered in Nacka, Sweden. In 2017, global revenues totaled SEK 86 billion, and by the end of that year the company employed about 34,012 people. The company manufactures products at about 100 production sites in more than 20 countries. As of 2016, the United States is the company’s largest single market, followed by China. The firm’s shares are listed on the OMX Stockholm exchange and both ‘A’ and ‘B’ classes form part of the benchmark OMXS30 index.
Atlas Copco companies develop, manufacture, service, and rent industrial tools, air compressors (of which it is the world’s leading producer), construction and assembly systems. The Group operates in four areas: Compressor Technique, Vacuum Technique, Construction Technique and Industrial Technique.
For more information and pricing, please request a quote.
