DESCRIPTION
Now you can get the air power you need with your FORD® with the Vanair Underdeck Air Compressor 100-185CFM!
When you need Air Power To Go™, rely on Vanair’s line of powerful, compact truck-mounted underdeck air compressors. At a fraction of the cost of tow-behinds, these compressors deliver a powerful 100 – 185 CFM of air combined with features and benefits that blow away the competition.

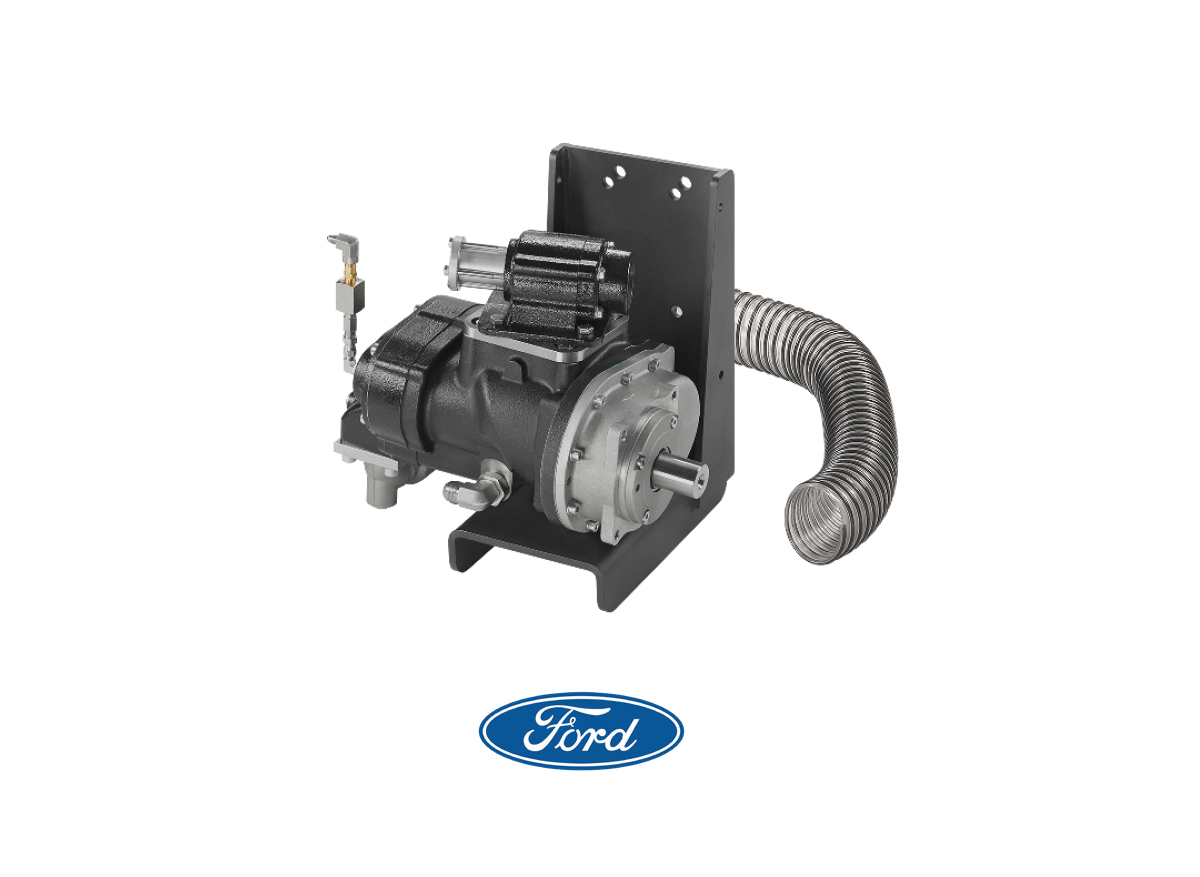

Vanair Underdeck Air Compressor 100-185CFM
Product Specifications:
The Vanair Underdeck Air Compressor comes in four configurations, offering capacities ranging from 100 CFM to 185 CFM. All models deliver air pressure between 100 and 150 PSI. Therefore, the required compressor input RPM varies depending on the chosen capacity (1595 RPM for 100 CFM to 2415 RPM for 185 CFM). Each unit has an initial oil fill capacity of 2.5 gallons.
The compressor itself measures 10.8 inches long by 9.5 inches wide by 16.3 inches high, while the air/fluid receiver measures 21.5 inches long by 10.25 inches deep. For some configurations, an additional remote air-to-oil cooler is included, measuring 26.5 inches wide by 19.25 inches high by 9.25 inches deep. It’s important to note that these dimensions are for reference only, and consulting Vanair for overall space requirements is recommended. Also, PTO and driveline are not included in the kits.
Special Features:
Durability & Efficiency:
The core of this system is a virtually indestructible air end with a lifetime warranty and a 100,000-hour design life. It also operates efficiently at lower engine RPMs, reducing fuel consumption and wear. In addition, the integrated inlet valve and rear discharge design contributes to better ground clearance for off-road use.
Reliable Power Generation:
The integrated generator boasts a brushless design for maintenance-free operation. Automatic voltage regulation ensures consistent power output (6.6 kW to 9.6 kW) at 120V or 120/240V, 60 Hz. Ground fault circuits and outlet panels can be customized for your specific needs.
Clean Air & Easy Maintenance:
The in-tank coalescer system provides superior oil separation with minimal maintenance and waste oil. It delivers less than 2 PPM oil carryover in the compressed air. The smaller tank design simplifies installation and features streamlined fittings for easy access, it also protects from the elements. The 5-year warranty on the coalescer element further reduces maintenance costs.
Powerful Drivetrain & Cooling:
The THRU-DRIVE™ system utilizes a factory-converted transfer case with a high-speed bearing for efficient power transfer. In fact, the air-to-oil heat exchanger keeps the system cool, even at high capacities.
Advanced Controls & Monitoring:
The Vanair® VTEC-II® control system provides comprehensive monitoring and control features. This specifically includes a diagnostic display for engine speed control, safety alerts, system checks, troubleshooting assistance, and user-friendly operation on an LCD screen.
Premium Protection & Long Life:
The compressor is equipped with a full suite of safety features, including high-temperature and pressure shutdowns, pressure relief valves, and automatic blowdown. The Vanguard™ synthetic oil offers exceptional thermal stability and extended drain intervals, while the UltraLife® 6000 hour air/oil separator boasts an innovative design that minimizes maintenance costs over the life of the system. The FailSafe® Dual Sensory Redundancy System provides an extra layer of protection by seamlessly switching to backup sensors in case of a primary sensor failure, preventing downtime.
Parts:
The Vanair Underdeck Air Compressor 100-185CFM is composed of many parts, such as:
The Vanguard™ Premium Rotary Screw Oil (Four Pack) 264626-4PACK, Vanguard™ Green Biodegradable Premium Rotary Screw Oil (Four Pack – One Gal.) 264626-4GREEN, Initial 50 Hour Service Kit (Four Gal. of Vanguard™ Oil & Oil Filter) KIT1282, and the Vanguard™ Lifetime Warranty Service Kit (Four Gal. Vanguard™ Oil, Oil Filter and Air Filter) KIT1057-263931.
An Oil filter 261991, the Air filter element 264266 or 263931, the In-Tank coalesce 260017-001 or 272339-004, a Temp switch non V-TEC 273786, and a V-TEC temp thermistor 266844.
Also a Pressure switch non V-TEC 262450, a V-TEC transducer 267363, a Relay 260246, a Blowdown valve 270807, and a Regulator valve 262047.
