DESCRIPTION

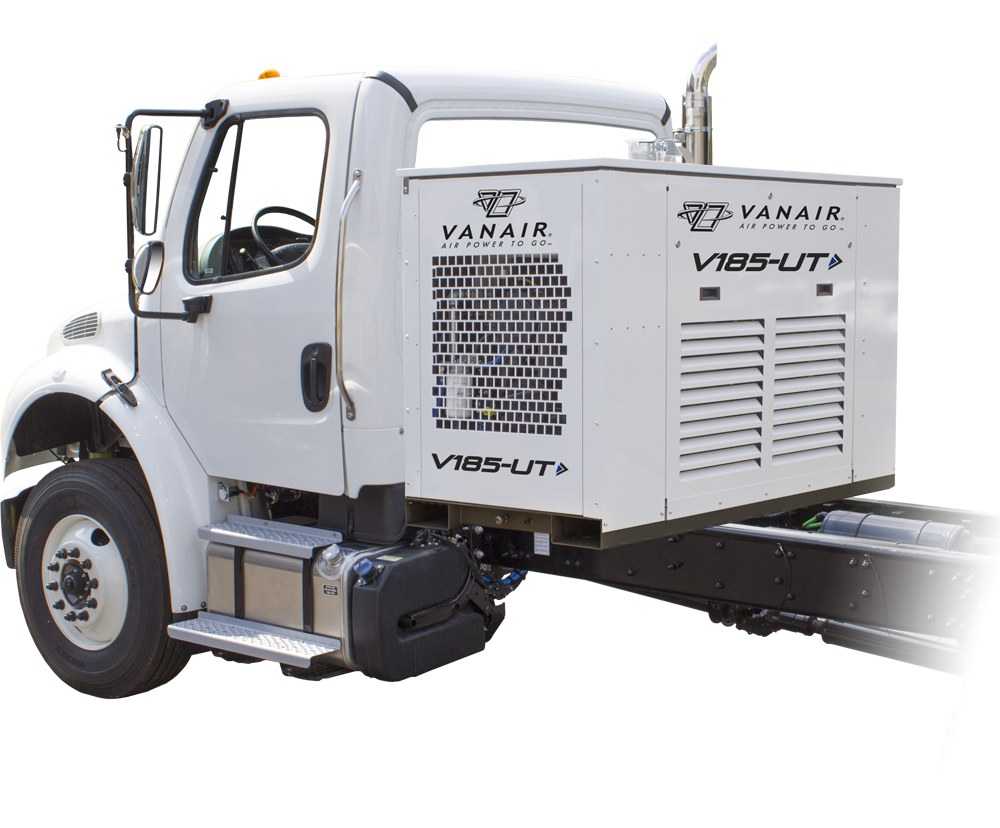

Vanair Tier 4 Utility Mount Air Compressors. Vanair® is pleased to offer our customers an industry-leading line of Tier 4 Final-compliant engine driven, utility mount, rotary screw air compressors in sizes of 185 CFM, 210 CFM, and 260 CFM. These stand-alone machines, which are typically cross-mounted along the bulkhead of the body of the vehicle, are equipped with a waterproof eye level, curbside digital control panel for easy accessibility. The corrosion resistant canopy has fork pockets and a balanced single point lifting bail for easy installation and removal.
Vanair Tier 4 Utility Mount Air Compressors Product Specifications:
V185-UT
Rated Delivery (CFM) 185
Rated Operating Pressure (PSI) 100
Fuel Capacity (gal.) 25
Length (in.) 80
Width (in.) 35
Height (in.) 55.39
Weight (lbs.) 2,340
V210-UT
Rated Delivery (CFM) 210
Rated Operating Pressure (PSI) 100
Fuel Capacity (gal.) 25
Length (in.) 80
Width (in.) 35
Height (in.) 55.39
Weight (lbs.) 2,550
V260-UT
Rated Delivery (CFM) 260
Rated Operating Pressure (PSI) 100
Fuel Capacity (gal.) 35
Length (in.) 83
Width (in.) 35
Height (in.) 55.39
Weight (lbs.) 3,070
Special Features:
Curbside Serviceability
Large, 108mm Diameter Rotary Screw Air End (127mm for V260-UT)
Automatic 0 to 100% Capacity Control
Two Stage Dry Type Air Filter – External Access
Two 3/4” Service Connections
Oil Level Sight Gauge
Isuzu® Engine for 185 CFM, John Deere® Engine for 210 and 260 CFM
Steel Fuel Tank
Side by Side Coolers for Compressor and Engine
Compact Size for Truck Mounting
Curbside Fuel Fill & Air Filter Access
Noise Level Limited to Maximum of 76 dBA at 7 Meters
All Drains End Mounted
Automatic Shutdown and Protection System
Automatic Blowdown Valve
Unloaded Starting
