DESCRIPTION
Tough Jobs Need Serious Air Power!
When you need serious air power to get the job done quickly and efficiently, Vanair PTO Underdeck Air Compressor 300-425CFM provide you with up to 425 CFM and 150 PSI of air power. Seamlessly installed under the body on the frame rails, Vanair’s underdeck systems: are half the price of a tow-behind compressor, frees up the truck bed space for additional tools, leaves tow hitch free, allows for increased maneuverability on jobs, Tier 4F compliant, reduces ground vehicle weight (GVW), and reduces maintenance expenditures since there’s only one engine to service! The Vanair PTO Underdeck Air Compressor 300-425CFM is ideal for various applications such as: air excavation (clean, dry digging for potholing), shotcrete, daylighting, manhole relining, asphalt and paint striping, crack sealing and tacking, railroad grinding and track lifting, and various kinds of medium-duty blasting (soda, sand, CO2, etc).
Underdeck Assembly for Chassis Makes:
Chevrolet
ISUZU
Kenworth
International®
CV International
Peterbilt
HINO
Freightliner®
Product Specifications:
Capacity (CFM) 300 350 375 400 425
Air (PSI) 250 100-150 100-150 100-125 100-125
Compressor Input (RPM) 2475 1925-1975 2060-2085 2175-2200 2325
Oil Capacity (Gal.) Initial Fill 10 10 10 10 10
Special Features:
The Vanair PTO Underdeck Air Compressor 300-425CFM boasts a variety of features designed for durability, efficiency, and operator convenience.

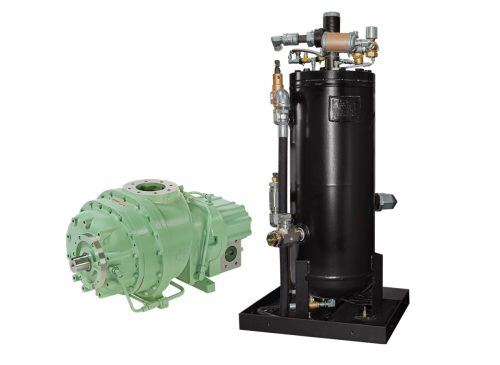

Built to Last: The core of this compressor is the Sullair® air end, known for its extended lifespan (110,000 hours) and ability to handle continuous operation (100% duty cycle). It’s further protected by a lifetime warranty.
Optimized Performance: A vertical receiver tank with internal components ensures clean, high-quality air while minimizing maintenance costs. An innovative brushless fan cooler provides superior cooling with a long lifespan (40,000 hours) and built-in protection against overheating and blockages.
Smart Controls: The Vanair® VTEC-II® Total Electronic Control System offers precise control over compressor operation. This includes variable speed control to reduce fuel consumption, noise, and engine wear, as well as user-friendly diagnostics and automated maintenance reminders. The system is weatherproof and easy to use, even in low-light conditions.
Advanced Oil & Safety: Vanguard™ synthetic blend compressor oil ensures exceptional performance and extended drain intervals (up to 8,000 hours). The FailSafe® Dual Sensory Redundancy System provides a vital safety net by seamlessly switching to backup sensors in case of a primary sensor failure, minimizing downtime.
Optional Accessories:
The Vanair PTO Underdeck Air Compressor offers a wide range of optional accessories to customize your compressed air system for specific applications.
Air Treatment: An external air-oil separating element provides additional filtration, while service/control line moisture separators remove unwanted water vapor from the air stream. You can also add a filter/lubricator/regulator (FLR) unit to further condition the air for your tools.
Delivery and Safety: Vanair offers various air hoses, hose reels, and fittings to efficiently manage compressed air delivery. An OSHA safety valve acts as a critical safety measure by automatically venting excess pressure. For added convenience, a tool oiler/lubricator keeps your pneumatic tools functioning smoothly.
Cold Weather Operation: When working in frigid environments, a cold weather kit with thermal valve and heating blankets ensures optimal performance by keeping the tank and regulator from freezing.
Additional Options: An air aftercooler with or without a moisture separator provides cooler, drier air for sensitive applications. A service airline de-icer prevents freezing in the air supply line. Vanair also offers a variety of hose reels in different configurations for easy hose management. You can further enhance safety with additional OSHA valves and a 3/4″ tool lubricator.
Protection and Monitoring: The ThermalGuard® weather protection kit safeguards the compressor in harsh environments. An optical oil level sensor provides a convenient way to monitor oil levels. With these comprehensive options, you can tailor the Vanair PTO Underdeck Air Compressor to perfectly suit your drilling needs.
