DESCRIPTION

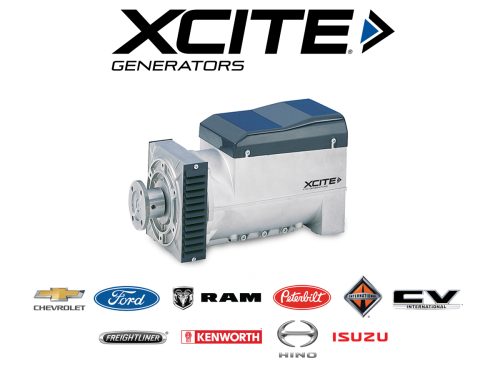

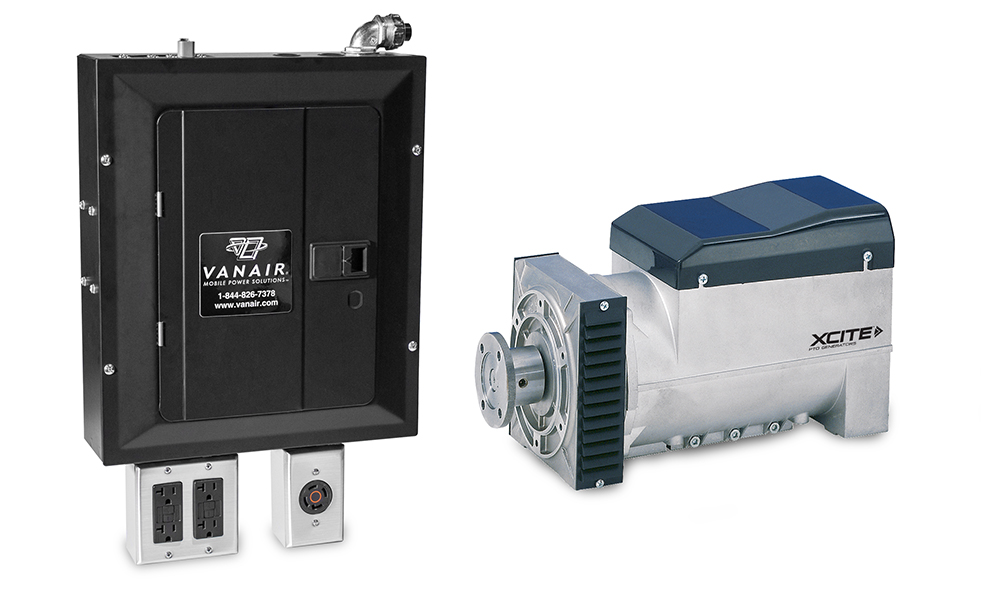

Vanair PTO Underdeck 6.8–25kW
Save weight, space, and money with Vanair’s Underdeck Generator – an underdeck unit that offers the power of a 6,000 to 25,000-watt AC generator. This innovative unit – developed by Vanair over 15 years ago – maximizes the power of your engine by enabling you to access AC power via your truck’s PTO drive. Ideal for plastic pipe fusion, night lighting, pumps, heaters, power outages, and pipe line relining equipment in the most remote locations. No need to tow a separate generator.
Vanair PTO Underdeck 6.8–25kW
Product Specifications:
kW 6.8 10 16.9 20 25
Voltage 120 or 120/240 120 or 120/240 120 or 120/240 120 or 120/240 120 or 120/240
Phase Single Single Single Single Single
AMPs 54/27 84/42 140/70 166/83 208/104
Speed (RPM) 1800 1800 1800 1800 1800
Weight (Lbs.) 80 123 270 295 339
Dimensions (In.): 12H x 11.5W x 17L (6.8 kW – 10kW), 12H x 12W x 24L (16.9 kW), 12H x 12W x 25L (20 kW – 25 kW)
Consult factory for additional kW options
Special Features:
The XCITE® PTO powered Generator is much simpler to operate than engine-driven counterparts. There is no need to replace the chassis alternator or add extra batteries similar to dynamic and static inverter applications.
Generates real AC power – not simulated or converted power – in capacities from 6,800 to 25,000 WATTS
Offers both 120-volt and 240-volt outlets
Precise frequency controls keep output regulated within two percent
Safety Equipment
Built-in over speed protection
Ground fault interrupter circuit
Built-in short circuit protection
Quality Features
Maintenance-free design
Brushless design
400% motor starting capabilities
Lifetime lubricated bearings
Quiet operation
ABOUT VANAIR
From Vanair’s Website:
“Since 1972 Vanair® has worked toward one goal – being the industry leader in Mobile Power Solutions®. During that time, it has been an honor to collaborate with a multitude of companies to engineer products that deliver a true performance edge. Today, from our facilities in Michigan City, Indiana, Vanair® offers the world’s most comprehensive product line of mobile power solutions:
- Vehicle-Mounted Air Compressors
- Generators
- Welders
- Hydraulics
- Electrified Power Equipment®
- Chargers/ Boosters
- Engine Starters
- Custom Mobile Power Equipment
An Innovative Idea in Mobile Power Solutions®
Vanair® began with an idea to do it better. In 1972, Vanair® Manufacturing began as Sullair PTO®, a division of Sullair® Corporation. It was there that a new product and industry were born. The product was the vehicle-mounted 185 CFM underdeck rotary screw air compressor. Its revolutionary design integrated the components of a tow behind rotary screw compressor onto a truck vehicle’s frame and utilized the truck’s engine to drive the compressor via the power takeoff (PTO). This innovative mobile power system eliminated the need for a separate engine driven, tow behind compressor. The advantages quickly impacted the mobile power industry by freeing up the vehicle’s hitch, saving weight, increasing valuable bed space, reducing maintenance and insurance costs, and increasing mobility. That engineering-focus and innovative spirit continues today and has led to multiple Vanair® exclusive Mobile Power Solutions®.
The Future of Mobile Power Solutions®
Vanair® has a straightforward goal– to be your Mobile Power Solutions® provider. We are an engineering-driven company known for our problem-solving capabilities to exceed expectations, drive uptime, and deliver unparalleled performance. Listening to the marketplace, utilizing our experienced team and extensive facilities, finding solutions to your challenges, providing the products that meet your needs – that’s Vanair®.
Where you need it, when you need it, and how you need it – Vanair’s there.”
