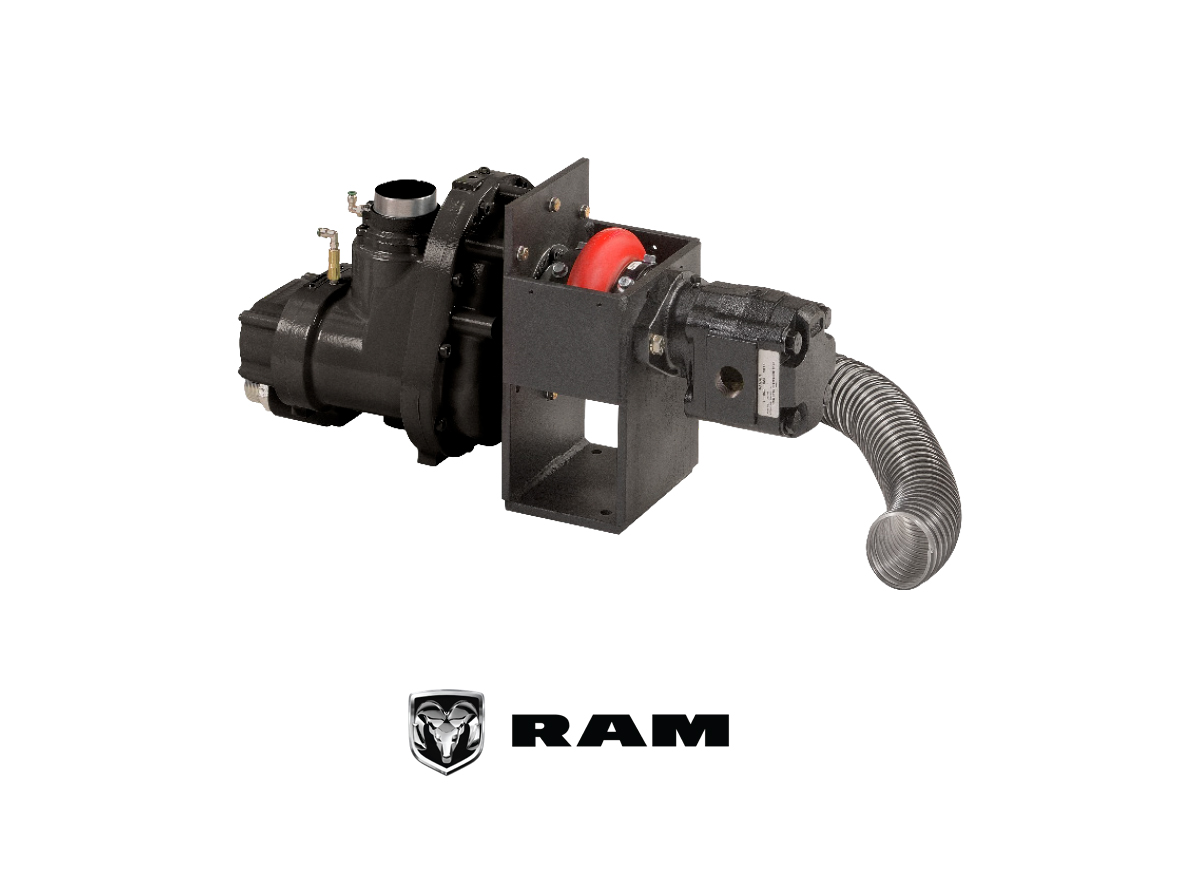

No Room for a PTO Shaft Driven System? Vanair Hydraulic Underdeck System 125-185CFM Is Your Answer
Lightweight, space saving and cost effective, Vanair Hydraulic Underdeck System 125-185CFM are ideal for vehicles that already have a built-in hydraulic system.
Product Specifications:
Capacity (CFM) 125 160 185
Air (PSI) 100-150 100-150 100-150
Hydraulic (GPM) 27.6-29.2 36.8-38.3 42.2-44.2
Hydraulic Pressure (PSI) 2100-2620 2200-2700 2400-2830
Oil Capacity (Gal.) Initial Fill 2.5 2.5 2.5
Please consult Vanair® for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Ratings above are approximate and are based on 120° F hydraulic fluid temperature. Add 400 PSI minimum to hydraulic requirements for hydraulic system continuous pressure ratings. Machine hydraulic relief
valve is set at 3200 PSI. Consult Vanair® for specific details.
*150 PSI kit includes additional cooler. Consult factory for over 185 CFM.
**Consult Vanair® – 60 CFM & 85 CFM – Not available for FORD® models
Special Features:
The Vanair Hydraulic Underdeck System 125-185CFM leverages hydraulic power to deliver exceptional compressed air performance, ideal for existing hydraulic system setups. Here’s a closer look at its key features:
Built for Endurance: The core of this system is a virtually indestructible air end with a lifetime warranty and a staggering 100,000-hour design life. It operates efficiently at lower engine RPMs, minimizing fuel consumption and wear. The integrated inlet valve and rear discharge design contributes to better ground clearance for off-road use.
Clean Air & Easy Maintenance: The in-tank coalescer system provides superior oil separation with minimal maintenance and waste oil. Protected from the elements, it delivers less than 2 PPM oil carryover in the compressed air. The smaller tank design simplifies installation and features streamlined fittings for easy access. The 5-year warranty on the coalescer element further reduces maintenance costs.
Powerful Drivetrain & Cooling: The RAMDRIVE PLUS™ system utilizes a converted transfer case with a high-speed bearing for efficient power transfer from your existing hydraulic system. The air-to-oil heat exchanger keeps the system cool, even at high capacities.
Advanced Controls & Monitoring: The Vanair® VTEC-II® control system provides comprehensive monitoring and control features. This includes a diagnostic display for remote engine speed control, safety alerts, system checks, troubleshooting assistance, and user-friendly operation on an LCD screen.
Safety & Long Life: The compressor is equipped with a full suite of safety features, including high-temperature and pressure shutdowns, pressure relief valves, and automatic blowdown. The Vanguard™ synthetic oil offers exceptional thermal stability and extended drain intervals. Loctite threadlocker adds an extra layer of security, while a reusable crate simplifies core return for maintenance.
Hydraulic System Requirements:
All hydraulic ratings and pressures are at the machine and do not take into account the pressure drops of individual hydraulic systems. These pressure drops need to be taken into account and added to the rating of the hydraulic pump and components. Vanair® highly recommends consulting a hydraulic supply expert for specifying the correct hydraulic pump size and type, oil reservoir size, hydraulic cooler, hydraulic pressure relief, and other hydraulic supply components for your application. Please take into consideration the following: the hydraulic flow and pressure requirements of the air compressor, the
continuous hydraulic load when the compressor is running, the duty cycle and ambient operating temperatures, and any other hydraulic equipment that may share the same hydraulic supply system (Vanair® recommends a dedicated pump and hydraulic circuit).

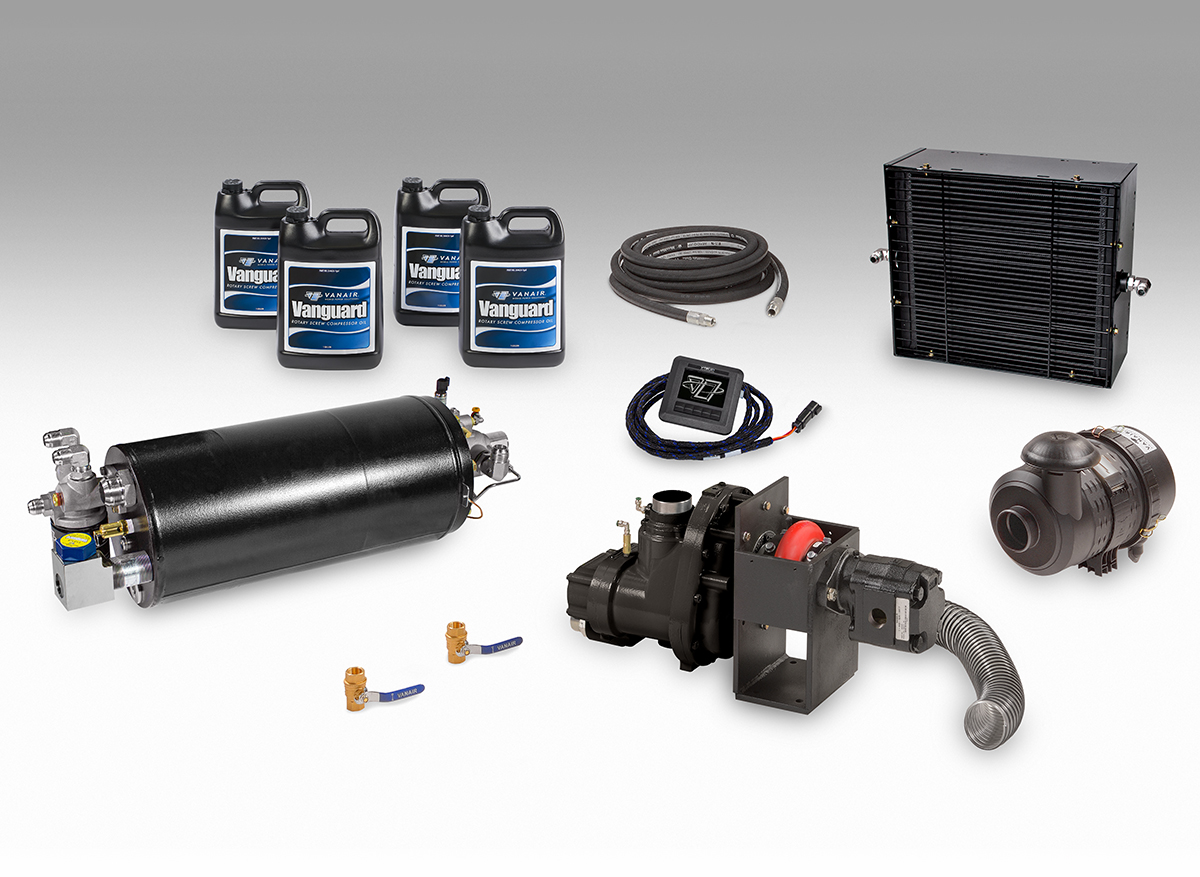

Parts:
Vanguard™ Premium Rotary Screw Oil (Four Pack) 264626-4PACK
Vanguard™ Green Biodegradable Premium Rotary Screw Oil (Four Pack – One Gal.) 264626-4GREEN
Initial 50 Hour Service Kit (Four Gal. of Vanguard™ Oil & Oil Filter) KIT1282
Vanguard™ Lifetime Warranty Service Kit (Four Gal. Vanguard™ Oil, Oil Filter and Air Filter) KIT1057-263931
Oil filter 261991
Air filter element 264266 or 263931
In-Tank coalesce 260017-001 or 272339-004
Temp switch non V-TEC 273786
V-TEC temp thermistor 266844
Pressure switch non V-TEC 262450
V-TEC transducer 267363
Relay 260246
Blowdown valve 270807
Regulator valve 262047
