DESCRIPTION

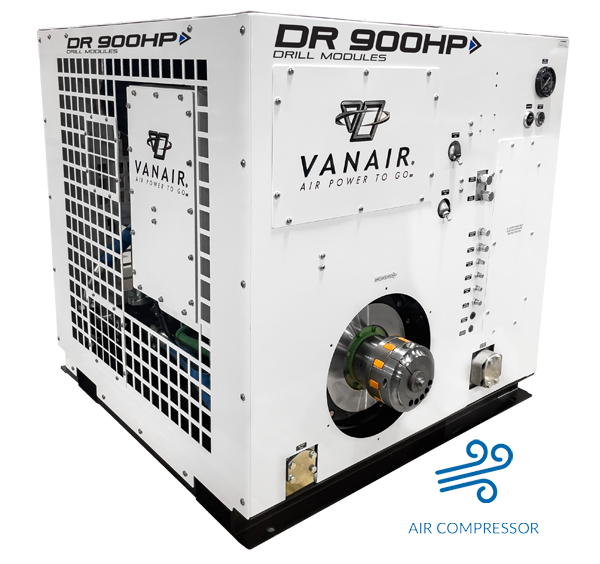

Single-Stage Compressor System Delivers 900 CFM @ 150 PSI to Get the Toughest Jobs Completed. The Vanair DR 900 Drill Module delivers the power, performance, and durability that you need on the job site! The Vanair DR 900 Drill Module features: 900 CFM and 150 PSI of air power (25.6 m3/min and 10.3 bar), a made in the USA, field proven Sullair® rotary screw air end, small footprint, and a remote separator tank for flexible mounting and easy maintenance.
Compressor Dimensions with Fittings (L x W x H):
51 L x 49 W x 45 H*
1295 x 1244 x 1158* (mm)
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Product Specifications:
Air Compressor
Rated Capacity 900 CFM (25.6 m3/min)
Pressure 150 PSI (10.3 bar)
RPM Input 1800 RPM
Input BHP Required 256 BHP (191 kW)
Tank Discharge 2 In. NPT
Physical Specifications
Compressor Module Weight 2500 lbs
Separator Tank Weights 1100 lbs
*Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Fan Power Requirements
Fan Drive Method Hydraulic
Hydraulic Flow Required 13.5 GPM
Hydraulic Pressure Required 2300 PSIG
Hydraulic Connections (Inlet and Outlet) 3/4 In. JIC
Case Drain Provided 3/8 In. JIC
Special Features:
PERFORMANCE
900 CFM and 150 PSI
Industry Leading Rotary Screw Air Compressor
Compact Design
Easy to Operate and Maintain
Simple Controls and Piping
Built for Harsh Environments
Made in the USA
AIR COMPRESSOR
Rotary Screw Air Compressor
Single-Stage
Field Proven Performance
Recirculating Valve for Noise Reduction
Discharge Pipe SAE 2.5-Inch Code 61 Flange with Leak-Free Fittings
DISCHARGE TANK
Vertical Design for Smaller Footprint and Better Angle of Operation
In-Tank Coalescer for Longevity
Minimum Pressure Valve
Pressure Relief Valve
Oil Scavenge Sight Glass
Coalescer Restriction Indicator
AIR-TO-OIL COOLER
Ambient Operating Range of -20 °F to +120 °F
AIR FILTER
Dual Two-Stage Air Filters with Dust Evacuators for Clean Air
Air Restriction Indicator
INSTRUMENTATION
Conveniently Located, Easy-to-Read Temperature and Pressure Gauges
Oil Level Sight Glass
SERVICEABILITY
Easily Accessible Air Filters and Coalescers for Routine Service
Independent Separator Tank for Ease of Maintenance
Hinged–Top Roof and Access Panel for Maintenance and Adjustments
Dust Evacuator for Easy Filter Maintenance
SAFETY
High-Pressure Shutdown
Air Pressure Relief Safety Valve
Automatic Blowdown on Shutdown
Oil Fill Plug Safety Relief
Minimum Pressure Valve
CONVENIENCE
Mounting Provisions on the Bottom of the Frame
Heavy Duty Frame with Integral Forklift Tubes
Powder Coated, Galvanneal Sheet Metal Enclosure
