DESCRIPTION

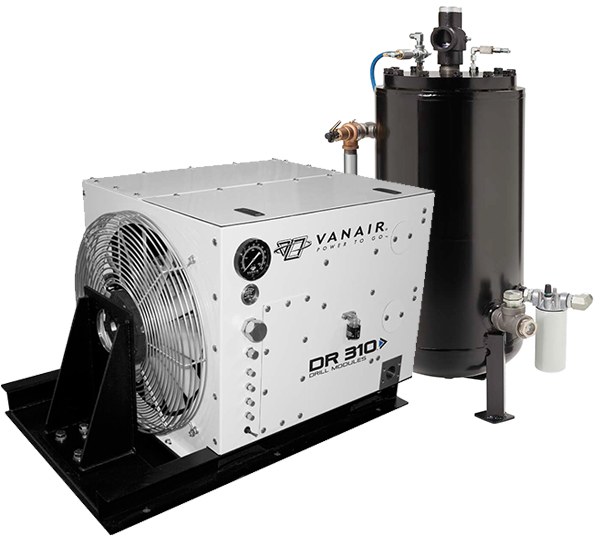

The compact Vanair DR 310 Drill Module provides an impressive 310 CFM and 200 PSI of air power (8.4 m3/min and 13.8 bar). Ideally suited for shallow wells where low pressure, low flow is required, the module can be hydraulically or engine driven. Designed for easy maintenance when mounted on the vehicle the Vanair DR 310 Drill Module is readily available and steadfastly supported by Vanair’s expansive service team to keep you up and running!
Compressor Dimensions with Fittings (L x W x H):
46 x 30 x 30 (in)
1168 x 762 x 762 (mm)
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair® for overall space and air requirements.
Product Specifications:
Air Compressor
Rated Capacity 310 CFM (8.4 m3/min)
Pressure Up to 200 PSI (13.8 Bar)
RPM Input 2500 RPM
Input BHP Required Up to 108 HP (81 kW)
Physical Specifications
Compressor Module Weight 900 lbs
Separator Tank Weight 200 lbs
Fan Power Requirements
Fan Drive Method Compressor Input Shaft
Special Features:
PERFORMANCE
310 CFM and 200 PSI
Industry Leading Rotary Screw Air Compressor
Compact Design
Easy to Operate and Maintain
Simple Controls and Piping
Built for Harsh Environments
Made in the USA
AIR COMPRESSOR
Rotary Screw Air Compressor
Single-Stage
Field Proven Performance
Recirculating Valve for Noise Reduction
Discharge Pipe SAE 2.5-Inch Code 61 Flange with Leak-Free Fittings
DISCHARGE TANK
Vertical Design for Smaller Footprint and Angle of Operation
In-Tank Coalescer for Longevity
Minimum Pressure Valve
Pressure Relief Valve
Oil Scavenge Sight Glass
Coalescer Restriction Indicator
AIR-TO-OIL COOLER
Ambient Operating Range of -20 °F to +120 °F
AIR FILTER
Dual Two-Stage Air Filters with Dust Evacuators for Clean Air
Air Restriction Indicator
INSTRUMENTATION
Conveniently Located, Easy-to-Read Temperature and Pressure Gauges
Oil Level Sight Glass
SERVICEABILITY
Easily Accessible Air Filters and Coalescers for Routine Service
Independent Separator Tank for Ease of Maintenance
Hinged–Top Roof and Access Panel for Maintenance and Adjustments
Dust Evacuator for Easy Filter Maintenance
SAFETY
High-Pressure Shutdown
Air Pressure Relief Safety Valve
Automatic Blowdown on Shutdown
Oil Fill Plug Safety Relief
Minimum Pressure Valve
CONVENIENCE
Mounting Provisions on the Bottom of the Frame
Heavy Duty Frame with Integral Forklift Tubes
Powder Coated, Galvanneal Sheet Metal Enclosure
