DESCRIPTION

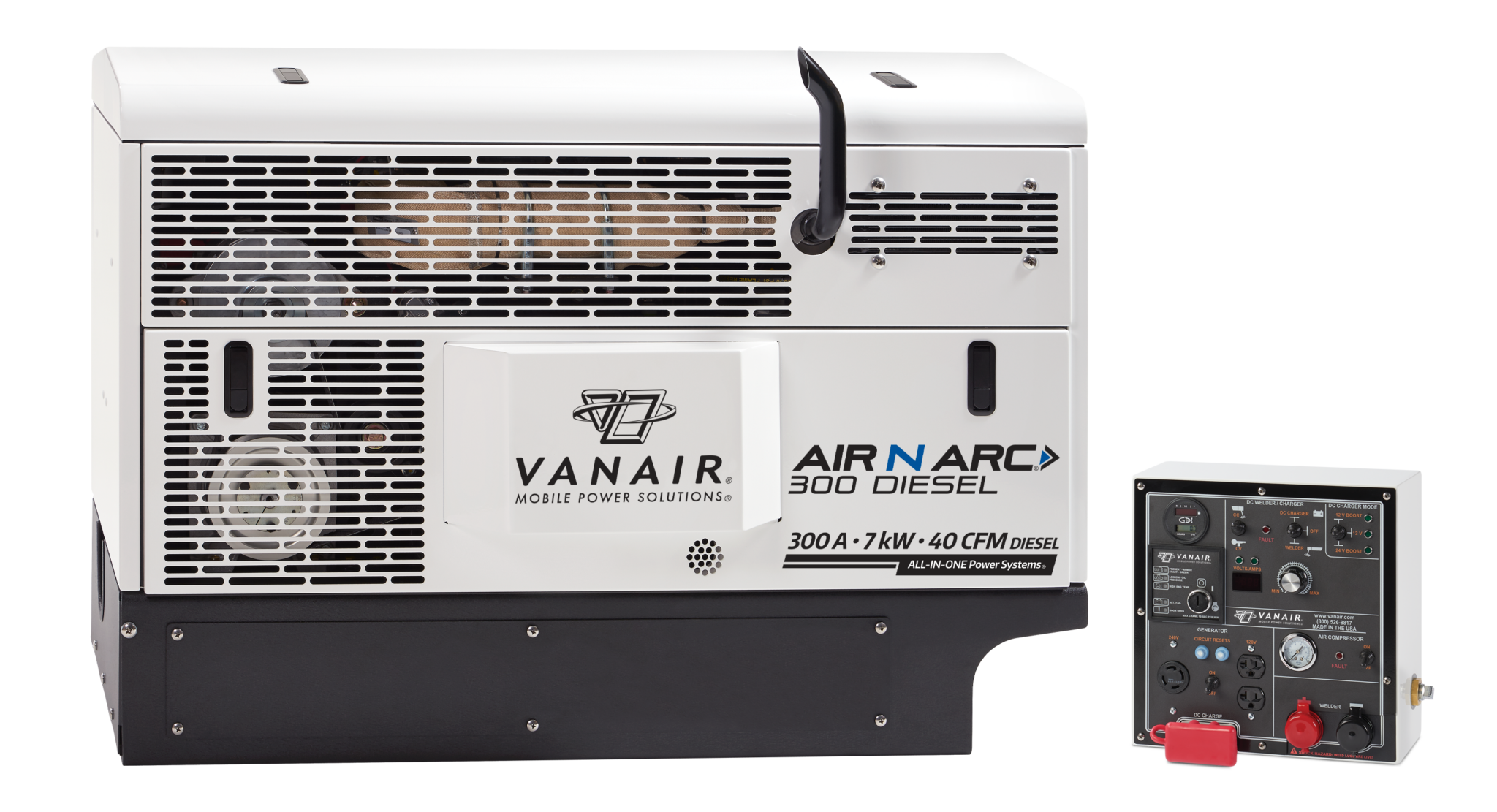

The Vanair Diesel Air N Arc 300 System, provides more efficient use of your truck bed and reduces cost by combining five power sources: Rotary screw on-demand air compressor, 7 kW generator, 300 AMP welder, battery booster and battery charger – into one single unit. Designed as a true two generator system, the Vanair Diesel Air N Arc 300 System allows multi-functioning such as welding and generator for lights for night time service.
Gas
Dimensions (In.)
Foot Print – 47.1L x 21.5W x 30.9H
with fittings – 47.1 L x 24.6 W x 30.9 H*
Dry weight (Lbs.) – 700 Lbs.
**Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Do not weld with the electrode holder connected to the negative port and the work piece connected to the vehicle. Bodily harm and equipment damage may occur.
Product Specifications:
Gas
Engine: Gas: 26.5 HP EFI Kohler®, Air Cooled
Compressor Type: Rotary screw
CFM Rating: 40 CFM
Max Pressure: 175 PSI
Generator Wattage: 7 kW peak – 6.8 kW continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets
Welder Amperage: High frequency DC welding, 270 AMPs at 100% duty cycle CC: 40-300 AMPs operating range, CV: 15-30 Volts
Battery Charger/Booster: 300 AMPs 12V/24V Boost, 50 AMP 12V Charge
Drive System: Belt Driven
Fuel Capacity (Gal.): 12 Gal. Integral Tank (Optional Remote Tank or Plumb to Chassis)
Diesel
Engine: Diesel: 25 HP Kubota®, Liquid Cooled (Tier 4 Compliant)
Compressor Type: Rotary screw
CFM Rating: 40 CFM
Max Pressure: 175 PSI
Generator Wattage: 7 kW peak – 6.8 kW continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets
Welder Amperage: High frequency DC welding, 270 AMPs at 100% duty cycle CC: 40-300 AMPs operating range, CV: 15-30 Volts
Battery Charger/Booster: 300 AMPs 12V/24V Boost, 50 AMP 12V Charge
Drive System: Belt Driven
Fuel Capacity (Gal.): 12 Gal. Integral Tank (Optional Remote Tank or Plumb to Chassis)
Special Features:
True Two Generator System for Safe Multi-Function of Welder and Electric tools
All the benefits of a High Frequency Welder offering Excellent Weld Characteristics
40 CFM Rotary Screw Compressor for Air on Demand and Extended Life of Unit
Heavy Duty Belt Drive System for Anti-Vibration and Long Service Intervals
Remote Mount Control Panel for the Ultimate in User Convenience
Fuel System can be Integrated with the Chassis
Integrated Lift Hook and Battery Tray
Designed for Easy Maintenance
Small Footprint – Will Fit on Side Pack or Behind Cab
Powder Coated Sheet Metal
Galvannealed Steel
AIR COMPRESSOR
Encapsulated Rotary Screw Compressor for Air-On-Demand
40 CFM @ 100 PSI
175 Max PSI
WELDER
High Frequency DC Welding
270 AMPs at 100% Duty Cycle
CC Range 40 – 300 AMPs Operating Range
CV Range 15 – 30 Volts
Independent DC Welder
Auto Speed Control
CV MIG Capabilities
GENERATOR
7 kW Peak
6.8 kW Continuous @ 60 Hz (Available In 5.7 kW Continuous Watts @ 50 Hz)
Independent AC Generator
Brushless
Smooth Wave for Minimal Distortion
Two-120V Outlets and One-240V Outlet
BATTERY BOOST/CHARGE
300 AMP 12V/24V Boost
50 AMP 12V Charge
COLD WEATHER PACKAGE
Optional Integrated 12V Weather Package on Diesel Only
Optional 12V Heaters for Gas Model
REMOTE CONTROL PANEL (HARNESS NOT INCLUDED)
Provides Ultimate User Convenience and Safety
All Functions Accessible at Panel. No Need to Jump In and Out of Vehicle.
Filter/Lubricator/Regulator (FLR)
Hose Reels and Fittings
OSHA Safety Valve (Velocity Fuse)
Post Drivers
Service/Control Line Moisture Separators
Tool Oiler/Lubricator
ENGINE
26.5 HP EFI Kohler, Air Cooled or 25 HP Kubota®, Liquid Cooled
Electric Start
12 Gal. Integral Tank
Provides Power for Emergency and Safety Lights with Truck Engine Turned Off
Tier 4 Emission Compliant
Glow Plugs
Parts:
Gas
Optional Cold Weather Package for 300G (12V, Air Comp. Oil, Eng. Oil Pan & Air Inlet Heater) 032770
Compressor Service Kit – 500 Hours or Annually Includes Oil, Oil Filter and Air Filter (for 300G Series) KIT1153
Compressor Service Kit – 50 Hours Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300G, 300D, 300H, and I-300 Series) KIT1285
Engine Service Kit – Includes 2 Qt. Oil, Oil Filter, Air Filter, Pre-Filter (for 300G Series) KIT1119
Vanguard™ Premium Green Oil (Four Pack) 264626-4GREEN
Vanguard™ Premium Oil (Four Gal.) 264626-4PACK
Diesel
Compressor Service Kit – 50 Hours Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300D, 300H, and I-300 Series) KIT1285
Compressor Service Kit – 500 Hours or Annually Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300G, 300D, 300H, and I-300 Series) KIT1153
Engine Service Kit – Includes One Gal. Oil, Oil Filter, Air Filter (for I-300 and 300D Series) KIT1154-01
Vanguard™ Premium Green Oil (Four Pack) 264626-4GREEN
Vanguard™ Premium Oil (Four Gal.) 264626-4PACK
