DESCRIPTION

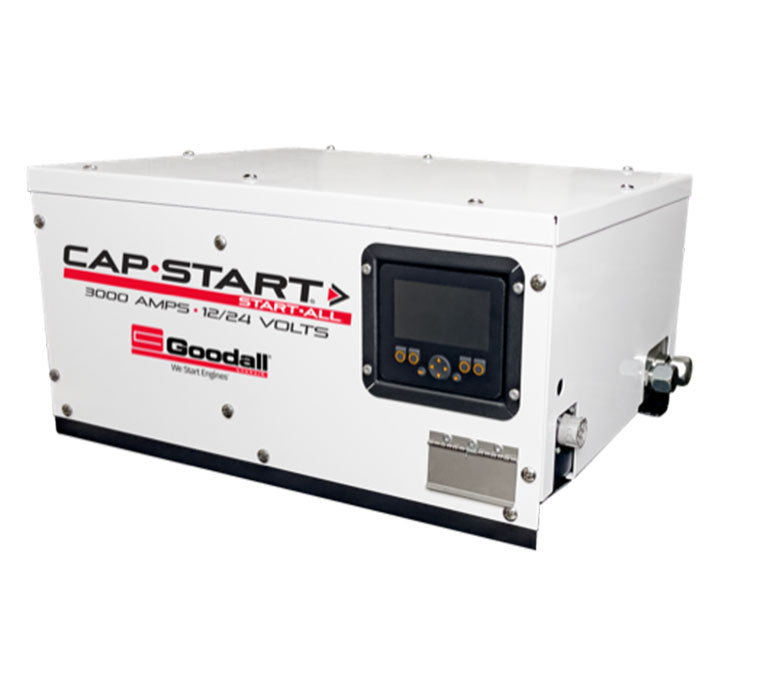

Dependable, Hydraulically Driven, Instantaneous Engine Starting! The all-new revolutionary Vanair Cap•Start 3000 Hydraulic delivers instantaneous starting power for all of your vehicle needs, including heavy-duty machinery, company fleets, and off-road vehicles in a compact design. Ideally suited for mounting on trucks already equipped with a PTO hydraulic pump, the Cap•Start® 3000 Hydraulic can easily be mounted in a side pack of the truck. The Vanair Cap•Start 3000 Hydraulic is packed with power to get you back on the road fast, offering:
Reduced Weight, Maintenance, Space Requirement, and Noise
3000+ AMPS of Instantaneous Starting Power
12V and 12V/24V Charging and Starting Capabilities
240 AMP 3-Stage Alternator for Fast Recharging
Industry-Leading Vanair® Super Capacitor™ (VSC™)
Dimensions with fittings (In.): 25L x 18W x 12H
Weight: 150 lbs. (Cables not included in weight)
Product Specifications:
12V & 12V/24V Starting Up to 3240 AMP Starting Capability
Drive Type Hydraulic
Hydraulic Requirements 8-12 GPM @ 3000 PSI
Motor Gear Motor
Drive System V-Belt
Battery Vehicle Chassis
DC Alternator 240 AMP, 12VDC/24VDC
Special Features:
PERFORMANCE
Vanair® Super Capacitor™ (VSC™)
3000 + AMPS Starting Capability
12V & 24V Charge & Start
240 AMP 3-Stage Alternator
Hydraulic Gear Motor
Heavy-Duty Belt Drive System
STARTING CABLES
30 Feet of 3/0 Polar-Grade Cable
UL/AWG Specification Compliant
Fine Stranded, Flexible Copper Wire
Cold Weather Flexibility
Tangle Resistant
Chemical, Abrasion and Water Resistant
Extruded Polarity Stripe for Safety Identification
CONTROL PANEL
Motor Start/Stop Function
Hour Meter
Voltage Output Display
Charge/Start Mode Selector
Mode Indicator Lights
System Fault Lights
CONVENIENCE
Fits Inside Many Side Compartments
Tough, Powder Coated Sheet Metal
Lightweight Aluminum Canopy
Anderson® Connector at Machine
SAFETY
Weather-Protected Electrical Enclosure
Reverse Polarity Protection
Open, Closed or Low Circuit Safety
Smart, Self-Regulating 3-Stage Charging System
