DESCRIPTION

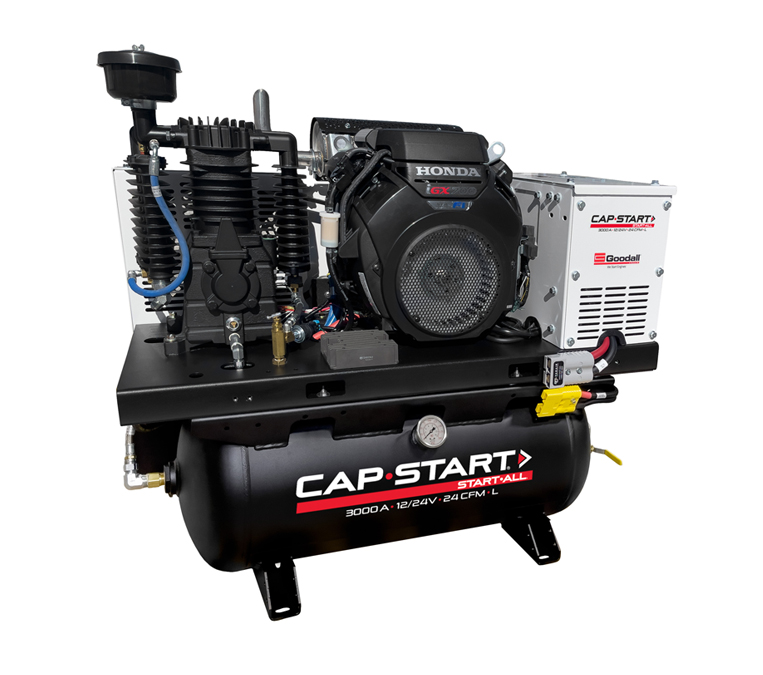

The Fastest and Lightest Instantaneous Engine Starting System on The Market! The new lightweight, 30-gallon, Vanair Cap•Start 3000 + Air Light allows you to rapidly start multiple vehicles in succession and provide the air power you need! Utilizing revolutionary new Vanair® Fast Start and Super Capacitor™ (VSC™) technology, Vanair Cap•Start 3000 + Air Light provides you with instantaneous starting power for all your heavy duty machinery, company fleets, and off road vehicles, keeping you up and running. No more waiting for your batteries to charge — getting you back to work in mere seconds. The Cap•Start® 3000 + Air Light is the fastest vehicle starting system on the market, offering:
3000+ AMPS of Instantaneous Starting Power
12VDC/24VDC Charging and Starting Capabilities
24 CFM and Up to 175 PSI of Air Power for All Your Pneumatic Tool Needs
240 AMP Self-Regulating Alternator for Fast Recharging
Innovative Vanair® Super Capacitor (VSC™)
Dimensions with Fittings (In.):
45.7L x 22.8W x 25.4H | Dry Weight (Lbs.): 360 | Skid Mount
46.7L x 23.4W x 42.7H | Dry Weight (Lbs.): 479 | 30-Gallon Tank Mount
Product Specifications:
12/24VDC Starting Up to 3240 AMP Starting Capability
DC Alternator 240 AMP at 12VDC/24VDC
Compressor Type Reciprocating
CFM Rating 24 CFM
Air Pressure 175 PSIG Max
Engine Type 22.1 HP Honda® IGX700 EFT ETB
Drive System Dual V-Belt
Fuel Type Gasoline
Fuel Capacity Optional Remote 11-Gal. Tank
Special Features:
PERFORMANCE
Vanair® Super Capacitor (VSC™)
3000 + AMPS Starting Capability
12VDC/24VDC Charge & Start
240 AMP Infinitely Variable Alternator
2-Stage Reciprocating Air Compressor
Up to 24 CFM and 175 PSI
Unloader Valves
Electronic Fuel Injected Honda® 22.1 HP IGX700 EFI ETB
Automatic Electronic Throttle Control
Heavy-Duty Belt Drive System
STARTING CABLES
30 Feet of 3/0 Polar-Grade Starting Cable
UL/AWG Specification Compliant
Fine Stranded, Flexible Copper
Cold Weather Flexibility
Tangle Resistant
Chemical, Abrasion and Water Resistant
Extruded Polarity Stripe for Safety Identification
CONTROL PANEL
Color LED Digital Display
Engine Start/Stop Function
Hour Meter
Voltage and Amperage Output Display
Battery Charge/Start Mode Function
Integrated Fault Codes and Warnings
Fault Level (If Applicable)
CONVENIENCE
Fully Powder Coated Aluminum Enclosure
Aluminum Enclosure Around Electrical or Critical Components
3/16″ Thick Steel Frame
Optional Removable Lifting Eye
Easy Service Access
SAFETY
Weather Resistant Electrical Enclosure
Smart, Self-Regulating Charging System
Protect•All® Safety Technology & Fault Codes
Parts:
Engine Service Kit (Includes: 2 Quart Honda® Motor Oil, Fuel Filter, Pre-Air Filter, Air Filter, Oil Filter, & Inline Fuel Filter) KIT1489
2 Quart Honda® Motor Oil 276041
Fuel Filter 381452-01
Pre-Air Filter 381452-02
Air Filter 381452-03
Oil Filter 283651
Inline Fuel Filter RC81465
