DESCRIPTION

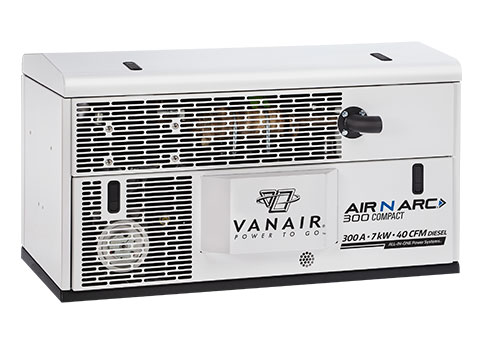

Vanair AirNArc 300 Compact ALL-IN-ONE.
While keeping full functionality of five power sources in one unit and the capability of multi-functioning, the Vanair AirNArc 300 Compact ALL-IN-ONE Power System was designed to be mounted under a box type body. Coming in 7.5 inches shorter and up to 100 lbs lighter than the standard Air N Arc 300 with fuel tank, the new compact unit provides the flexibility and space-saving capability to mount the unit outside the body of the vehicle while still maintaining ground clearance.
AirNArc 300 Compact Compact Diesel Unit Dimensions:
Foot Print (In.): 47.5L x 21.0W x 28.4H
With Fittings (In.): 48.0L x 25.0W x 28.4H
Dry Weight (Lbs.): 775
Air N Arc® 300 Compact Gas Unit Dimensions:
Foot Print (In.): 47.1L x 21.5W x 23.9H
With Fittings (In.): 47.1L x 24.6W x 23.9H
Dry Weight (Lbs.): 650
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Product Specifications:
Engine: Diesel: 25 HP Kubota®, Liquid Cooled (Tier 4 Compliant) Gas: 26.5 HP Kohler®, Air Cooled
Air Compressor: Rotary Screw, 150 PSI, 40 CFM (175 MAX PSI)
Generator: 7 kW Peak – 6.8 kW Continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets
Welder: High Frequency DC welding, 270 AMPS at 100% duty cycle CC: 40-300 AMPs Operating Range, CV: 15-30 Volts
Battery Charger/Booster: 300 AMPs 12V/24V Boost, 50 AMP 12V Charge
Drive System: Belt driven
Fuel Capacity: Plumb to Chassis
Special Features:
True Two Generator System for Safe Multi-Function of Welder and Electric tools
All the Benefits of a High Frequency Welder Offering Excellent Weld Characteristics
40 CFM Rotary Screw Compressor for Air on Demand and Extended Life of Unit
Heavy Duty Belt Drive System for Anti-Vibration and Long Service Intervals
Remote Mount Control Panel for the Ultimate in User Convenience
Fuel System Integrated with the Chassis
Integrated Lift Hook and Battery Tray
Designed for Easy Maintenance
Small Footprint – Will Fit on Side Pack or Behind Cab or Under Box Type Body
Powder Coated Sheet Metal
Galvannealed Steel
Low Profile Height
AIR COMPRESSOR
Encapsulated Rotary Screw Compressor forAir-On-Demand
40 CFM @ 150 PSI
175 Max PSI
WELDER
High Frequency DC Welding
270 AMPs at 100% Duty Cycle
CC Range 40 – 300 AMPs Operating Range
CV Range 15 – 30 Volts
Independent DC Welder
Auto Speed Control
CV MIG Capabilities
GENERATOR
7 kW Peak
6.8 kW Continuous @ 60 Hz (Available In 5.7 kW Continuous Watts @ 50 Hz)
Independent AC Generator
Brushless
Smooth Wave for Minimal Distortion
Two-120V Outlets and One-240V Outlet
BATTERY BOOST/CHARGE
300 AMP 12V/24V Boost
50 AMP 12V Charge
COLD WEATHER PACKAGE
Integrated 12V Weather Package on Diesel Only
120V Engine Block Heater on Diesel Only
Optional 12V Heaters for Gas Model
REMOTE CONTROL PANEL (HARNESS NOT INCLUDED)
Provides Ultimate User Convenience and Safety
All Functions Accessible at Panel. No Need to Jump In and Out of Vehicle.
Filter/Lubricator/Regulator (FLR)
Hose Reels and Fittings
OSHA Safety Valve (Velocity Fuse)
Post Drivers
Service/Control Line Moisture Separators
Tool Oiler/Lubricator
ENGINE
26.5 HP EFI Kohler®, Air Cooled or 25 HP Kubota®, Liquid Cooled
Electric Start
Provides Power for Emergency and Safety Lights with Truck Engine Turned Off
Tier 4 Emission Compliant on Diesel Only
Automatic Glow Plugs on Diesel Only
Parts:
Gas
Optional Cold Weather Package for 300G (12V, Air Comp. Oil, Eng. Oil Pan & Air Inlet Heater) 032770
Compressor Service Kit – 50 Hours Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300G, 300D, 300H, and I-300 Series) KIT1285
Compressor Service Kit – 500 Hours or Annually Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300G, 300D, 300H, and I-300 Series) KIT1153
Engine Service Kit – Includes 2 Qt. Oil, Oil Filter, Air Filter, Pre-Filter (for 300G Series) KIT1119
Vanguard™ Premium Green Oil (Four Pack) 264626-4GREEN
Vanguard™ Premium Oil (Four Gal.) 264626-4PACK
Diesel
Compressor Service Kit – 50 Hours Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300G, 300D, 300H, and I-300 Series) KIT1285
Compressor Service Kit – 500 Hours or Annually Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300G, 300D, 300H, and I-300 Series) KIT1153
Engine Service Kit – Includes One Gal. Oil, Oil Filter, Air Filter (for I-300 and 300D Series) KIT1154-01
Vanguard™ Premium Green Oil (Four Pack) 264626-4GREEN
Vanguard™ Premium Oil (Four Gal.) 264626-4PACK
ABOUT VANAIR
From Vanair’s Website:
“Since 1972 Vanair® has worked toward one goal – being the industry leader in Mobile Power Solutions®. During that time, it has been an honor to collaborate with a multitude of companies to engineer products that deliver a true performance edge. Today, from our facilities in Michigan City, Indiana, Vanair® offers the world’s most comprehensive product line of mobile power solutions:
- Vehicle-Mounted Air Compressors
- Generators
- Welders
- Hydraulics
- Electrified Power Equipment®
- Chargers/ Boosters
- Engine Starters
- Custom Mobile Power Equipment
An Innovative Idea in Mobile Power Solutions®
Vanair® began with an idea to do it better. In 1972, Vanair® Manufacturing began as Sullair PTO®, a division of Sullair® Corporation. It was there that a new product and industry were born. The product was the vehicle-mounted 185 CFM underdeck rotary screw air compressor. Its revolutionary design integrated the components of a tow behind rotary screw compressor onto a truck vehicle’s frame and utilized the truck’s engine to drive the compressor via the power takeoff (PTO). This innovative mobile power system eliminated the need for a separate engine driven, tow behind compressor. The advantages quickly impacted the mobile power industry by freeing up the vehicle’s hitch, saving weight, increasing valuable bed space, reducing maintenance and insurance costs, and increasing mobility. That engineering-focus and innovative spirit continues today and has led to multiple Vanair® exclusive Mobile Power Solutions®.
The Future of Mobile Power Solutions®
Vanair® has a straightforward goal– to be your Mobile Power Solutions® provider. We are an engineering-driven company known for our problem-solving capabilities to exceed expectations, drive uptime, and deliver unparalleled performance. Listening to the marketplace, utilizing our experienced team and extensive facilities, finding solutions to your challenges, providing the products that meet your needs – that’s Vanair®.
Where you need it, when you need it, and how you need it – Vanair’s there.”
