DESCRIPTION

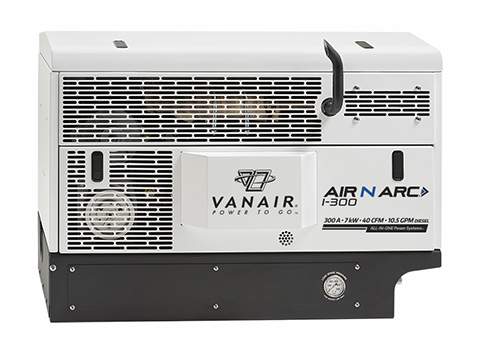

The inclusive, innovative, indispensable Vanair Air N Arc® I-300 System is the first system in the world to offer six forms of power in a single 48” unit with full multi-functioning capabilities. The Air N Arc® I-300 unique system allows you to turn off the trucks engine and while still supporting the electrical of the truck, so all the emergency lighting can still be used without fear of killing the truck battery. Based on the technology of the Air N Arc® 300 diesel system, the Vanair Air N Arc® I-300 System provides an integrated 40 CFM rotary screw compressor, 7 kW AC generator, 300 AMP welder, battery booster and battery charger, with the added power of a 13 GPM hydraulic pump…all driven by a single engine. The Air N Arc® I-300 offers enough power to run a crane and the technology to integrate with the crane control.
Dimensions –
Foot Print (In.) – 47.1L x 21.0W x 33.4H
Dry Weight with Control Panel (Lbs.) – 852
Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.
Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
Product Specifications:
Engine: 25 HP Kubota®, Liquid Cooled (Tier 4 Compliant)
Compressor Type: Rotary Screw
CFM Rating: 40 CFM Free Air at High Speed, 30 CFM Free Air at Idle
Max Pressure: 175 PSI
Generator Wattage: 7 kW Peak – 6.8 kW Continuous, AC Power, 60 Hz, Single Phase, 120V GFCI and 240V Outlets
Hydraulic Output: Up to 13 GPM, Up to 3000 PSI (10.5 GPM Hydraulic Piston Pump)
Welder Amperage: High Frequency DC Welding,270 AMPs at 100% Duty Cycle CC: 40-300 AMPs Operating Range, CV: 15-30 Volts
Battery Booster/Charger: 300 AMPs 12/24V Boost, 50 AMP 12V Charge
Drive System: Belt Driven
Fuel Tank: Plumb to Chassis or Optional 12 Gal Remote Tank.
Special Features:
One Unit Incorporates Air Compressor, Generator, Battery Booster, Battery Charger, Welder and Hydraulic Pump. No Need for Auxiliary Plug-In Welder or Battery Booster
Reliable and Easy Electric Starting Kubota® Engine
Heavy Duty Belt Drive System for Anti-Vibration and Long Service Intervals
Electric Fuel Pump for Ease of Chassis Fuel System Integration
Capable of Charging Vehicle’s Battery.
True Two Generator System for Safe Multifunction of Welder and Electric Tools
CV Functionality for Voltage Sensing Suitcase Feeder for MIG Welding
Auto Speed Control for Weld/Battery Boost Function
Rotary Screw Air Compressor for Air On Demand
Integrated Lift Hook and Battery Tray
Battery Jump Start Receptacle
Manual Reset AC Circuit Breakers
Designed for Easy Maintenance and Fuel Efficiency
Small Footprint – Will Fit on Side Pack or Behind Cab
Powder Coated Sheet Metal
Galvannealed Canopy
AIR COMPRESSOR
Rotary Screw Compressor – Encapsulated
40 CFM @ 100 PSI; 30 CFM @ Idle
175 Max PSI
GENERATOR
7 kW Peak
6.8 kW Continuous @ 60 Hz
Independent AC Power for Safe Multi-Functioning
Brushless
Smooth Wave for Minimal Distortion
Two-120V GFCI Outlets and One-240V Outlet
COLD WEATHER PACKAGE
Standard 12V Chassis Powered Thermal Blankets for Cold Weather
WELDER
High Frequency DC Welding
CC Range 40 – 300 AMPs Operating Range
CV Range 15 – 30 Volts
270 AMPs at 100% Duty Cycle
Independent Welding Generator
Safe Multi-Function
Auto Speed Control
CV MIG Capability
BATTERY BOOST/CHARGE
300 AMP 12V/24V Boost
50 AMP 12V Charge
Capable of Jump Starting Your Truck’s Engine
Maintains Truck’s Battery and Operates Work and Emergency Lights While Engine is Off
REMOTE CONTROL PANEL (HARNESS NOT INCLUDED)
Provides Ultimate User Convenience and Safety
All Functions Accessible at Panel. No Need to Jump In and Out of Vehicle.
Filter/Lubricator/Regulator (FLR)
Hose Reels and Fittings
OSHA Safety Valve (Velocity Fuse)
Post Drivers
Service/Control Line Moisture Separators
Tool Oiler/Lubricator
HYDRAULIC PUMP
Up to 13 GPM
3000 Maximum PSI
Variable Displacement Hydraulic Piston Pump Compatible with Both an Open Center and Closed Center System
25 HP Kubota® Engine, Liquid Cooled
Electric Start
Glow Plug
Parts:
Compressor Service Kit – 50 Hours Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300G, 300D, 300H, and I-300 Series) KIT1285
Compressor Service Kit – 500 Hours or Annually Includes Oil, Oil Filter, Oil/Air Separator and Air Filter (for 300G, 300D, 300H, and I-300 Series) KIT1153
Engine Service Kit – Includes One Gal. Oil, Oil Filter & Air Filter (for I-300 and 300D Series) KIT1154-01
Vanguard™ Premium Green Oil (Four Pack) 264626-4GREEN
Vanguard™ Premium Oil (Four Gal.) 264626-4PACK
