Description

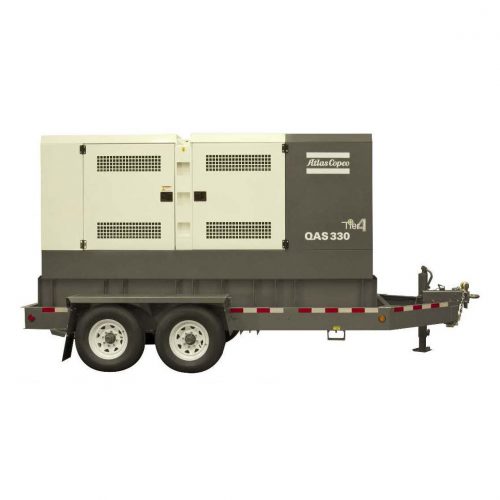

The Atlas Copco QAS 150-330 MTU T4F Generators are prime power, multi-voltage, sound attenuated, mobile generators.
They pack an impressive amount of power into heavy duty, weather proof, sound attenuated and compact enclosures. Available in either a skid mount or trailer mounted configuration, it is adaptable to whatever your job site demands. The Atlas Copco QAS 150-330 MTU T4F Generators combine the robustness and reliability you need with innovative features for additional safety and ease of use.
Need Power?
The units consist of an alternator, diesel engine, cooling system, electrical distribution and control systems – all enclosed within a sound attenuated enclosure fabricated from zink rich primer, powder coated enclosure.
A broad range of undercarriage formats and options are available.
Special attention has been given to the overall product quality, user friendliness, ease of serviceability, and economical operation to ensure best in class total cost of ownership.
Simplified Maintenance
Single Side servicing through large service doors providing quick access to components, including the
alternator, engine and electrical systems. Drains for water and oil are easy to reach and can be directed outside of the containment basin for draining. Coupled with extended life filters for 500 hour service intervals, make this generator the workhorse of your fleet.
Reliable Proven Engine
The MTU Tier 4 Final platform is based on the proven MTU/Daimler industrial platform, incorporating their emissions technology that has been used in their on-highway T4F engines for many years. The aftertreament system is compromised of an SCR only solution. Thus eliminating the DPF (Diesel Particulate Filter) and DOC (Diesel Oxidization Catalyst) and simplifying the package.
User Friendly Controls
The QAS 150 through 330 Tier 4 final range comes standard with a Deep Sea 7310 controller. The controller is user friendly with a back lit display showing all critical machine information, which can be viewed through a rugged Plexiglas panel in the door.
Common Platforms
The QAS 250 & QAS 330 are the same platform with a common engine platform, cubicle and enclosure. This keeps most parts and service packs the same between all three models.
| Model | QAS 150 MD | QAS 250 MD | WAS 330 MD | |
|---|---|---|---|---|
| Rated Prime Power 3Ø 60hz | kW / kVA | 120 / 150 | 200 / 250 | 264 / 330 |
| Rated Stand-by Power 3Ø 60hz | kW / kVA | 132 / 165 | 220 / 275 | 290 / 363 |
| Voltage Selection 3Ø 60hz | V | 208 / 240 / 480 | ||
| Amperage @ 480 volts | A | 180 | 301 | 397 |
| Amperage @ 240 volts | A | 360 | 601 | 794 |
| Amperage @ 208 volts | A | 416 | 694 | 916 |
| Rated Prime Power 1Ø 60hz | kVA | 150 | 250 | 330 |
| Voltage Selection 1Ø 60hz | V | 120/240 | ||
| Amperage @ 240 volts | A | 185 | 721 | 821 |
| Amperage @ 120 volts | A | 370 x 2 | 721 x 2 | 821 x 2 |
| Rated Prime Power 3Ø 50hz | kW / kWA | 95 / 120 | 200 / 250 | 224 / 280 |
| Voltage Selection 3Ø 50hz | V | 400 | ||
| Amperage Capacity @ 400V | A | 173 | 361 | 390 |
| Sound Pressure @ 23’(7 m) @ 75% Load | dBA | 73.1 | 73.5 | 73.7 |
| Convenience Receptacles | 2 x NEMA 5-20R & 2 x 125/250V 50A CS6364 |
