DESCRIPTION

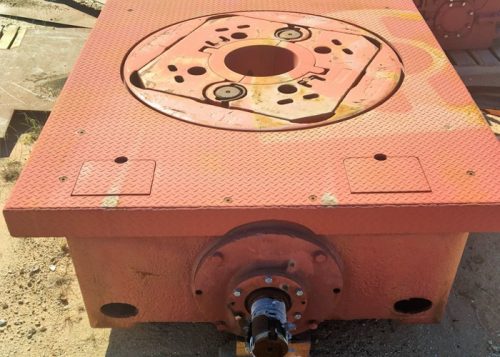

The C-375 Rotary Table by National Oilwell Varco is used for onshore and offshore drilling. Most conductor, riser, and wellhead elements will pass through the C-375 Rotary Table 37-1/2″ table opening.
Armco produces a full line of NATIONAL Rotaries notable for dependability, safety and efficiency, and suitable for any drilling requirement from shallow to the deepest wells. Construction features of NATIONAL Rotaries are developments of nearly half a century of constant design improvement.
FEATURES
- C-375
- Table Opening –Â 37-1/2″
- Static load rating –Â 650 Tons
- Table Axis to Center Inner Row Sprocket Teeth –Â 53 1/4″
- Gear Ratio –Â 3.60
- Pinion Shaft Diameter In Pinion End Baring –Â 5.908″
- Pinion Shaft Diameter In Sprocket End Baring –Â 5.120″
- Main Bearing, Number and Size of Balls –Â 40–2 3/4
- Hold-Down Bearing, Number and Size of Balls –Â 36–2″
- Pinion Shaft Axis to Bottom of Base –Â 13″
- Oil Reservoir Capacity –Â 7 Gal.
- Width Overall Skids –Â 56 3/4″
- Width Overall –Â 70 3/4″
- Length Overall –Â 95 3/4″
- Height Overall –Â 28″
- Net Weight Including Master Bushing But Less Sprocket 14,600 lbs.
