DESCRIPTION

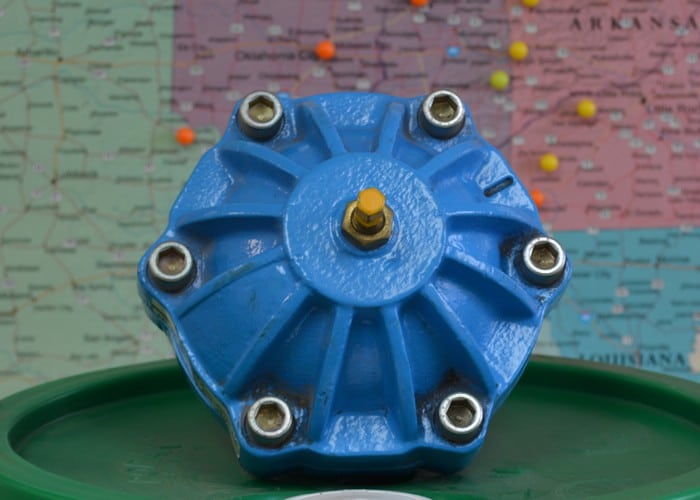

The Pulsation Dampener 3375-0015-3 from the Hypro series assures smooth discharge from piston and plunger pumps. It also reduces peak loading on pump bearings and other internal parts. The Pulsation Dampener 3375-0015-3 extends the system life and minimizes maintenance costs.
SPECIFICATIONS
- Standard dampeners are precharged at the factory with dry nitrogen at 300 PSI.
- 300-1,500 Maximum PSI
- Manufacture Date 9-15-10
| Model | Mounting Port | Capacity | Weight |
|---|---|---|---|
| 3375-0015-3 | 1″ NPT (F) | 30 Cubic Inches (490 cm³) | 12 lbs |
PARTS
Baffle Plug – Glass-filled nylon
Bolts – High strength 7/16″ socket head
Body and Cover – Ductile iron for extra strength. Epoxy coated inside and out for corrosion protection.
Check Valve Body – Brass, with a special high pressure valve core. Threaded to fit standard dry nitrogen filling equipment.
Diaphragm – Heavy duty Buna-N suitable for use with detergents and water to 140°F (60°C); and other chemicals not harmful to Buna-N.
OPERATION GUIDELINES
As a general guideline, when using two cylinder or four cylinder piston pumps, the dampener charge should be approximantely 1/2 of the pump operating pressure. When using a three or six cylinder pump, te dampener charge should be approximately 2/3 of the pump operating pressure. This pump is rated for up to 1500 psi.
For more information on Operation, installation, and repair instructions, call Drilling Equipment Resources at 918-895-6759.
