DESCRIPTION

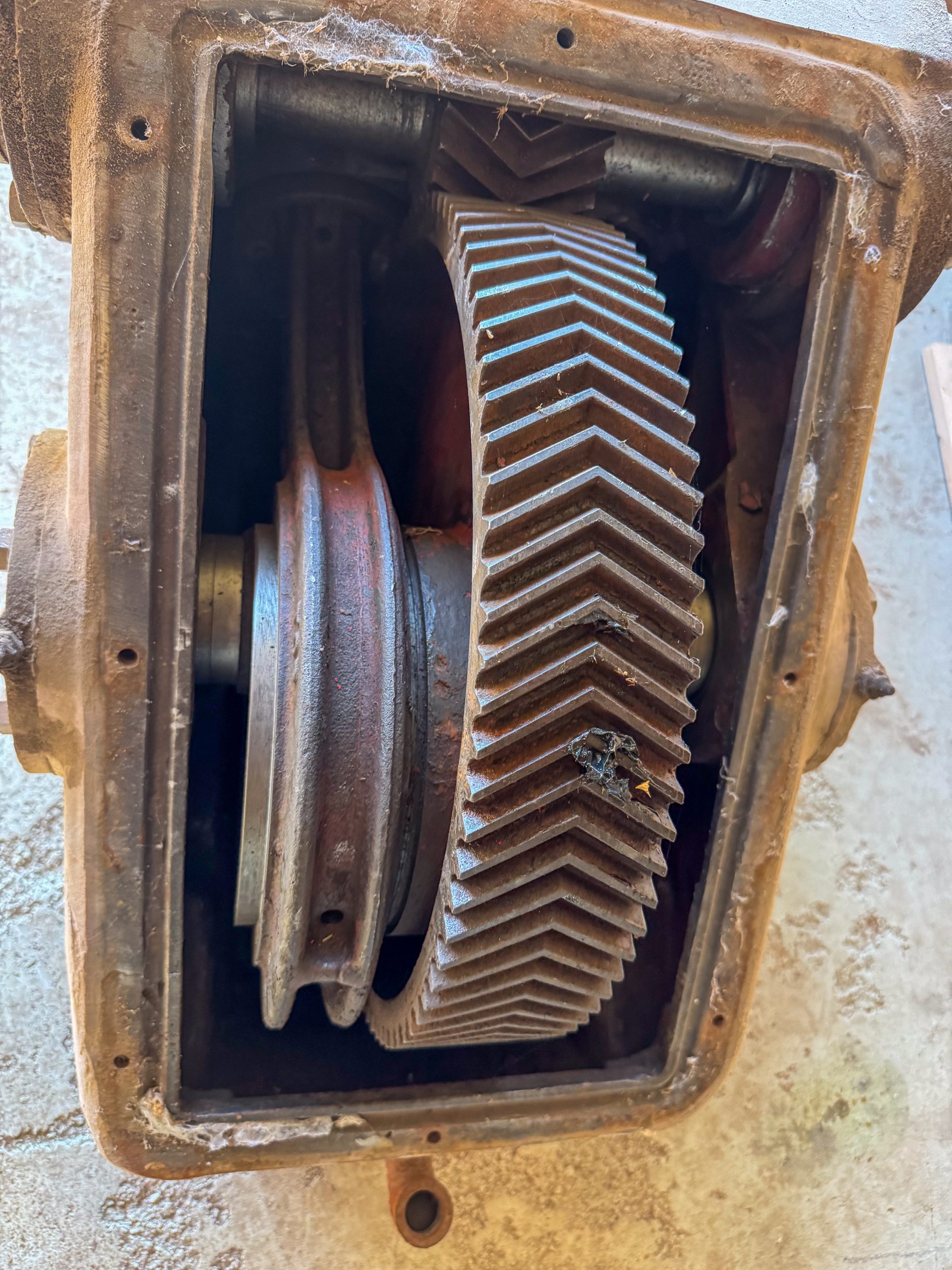

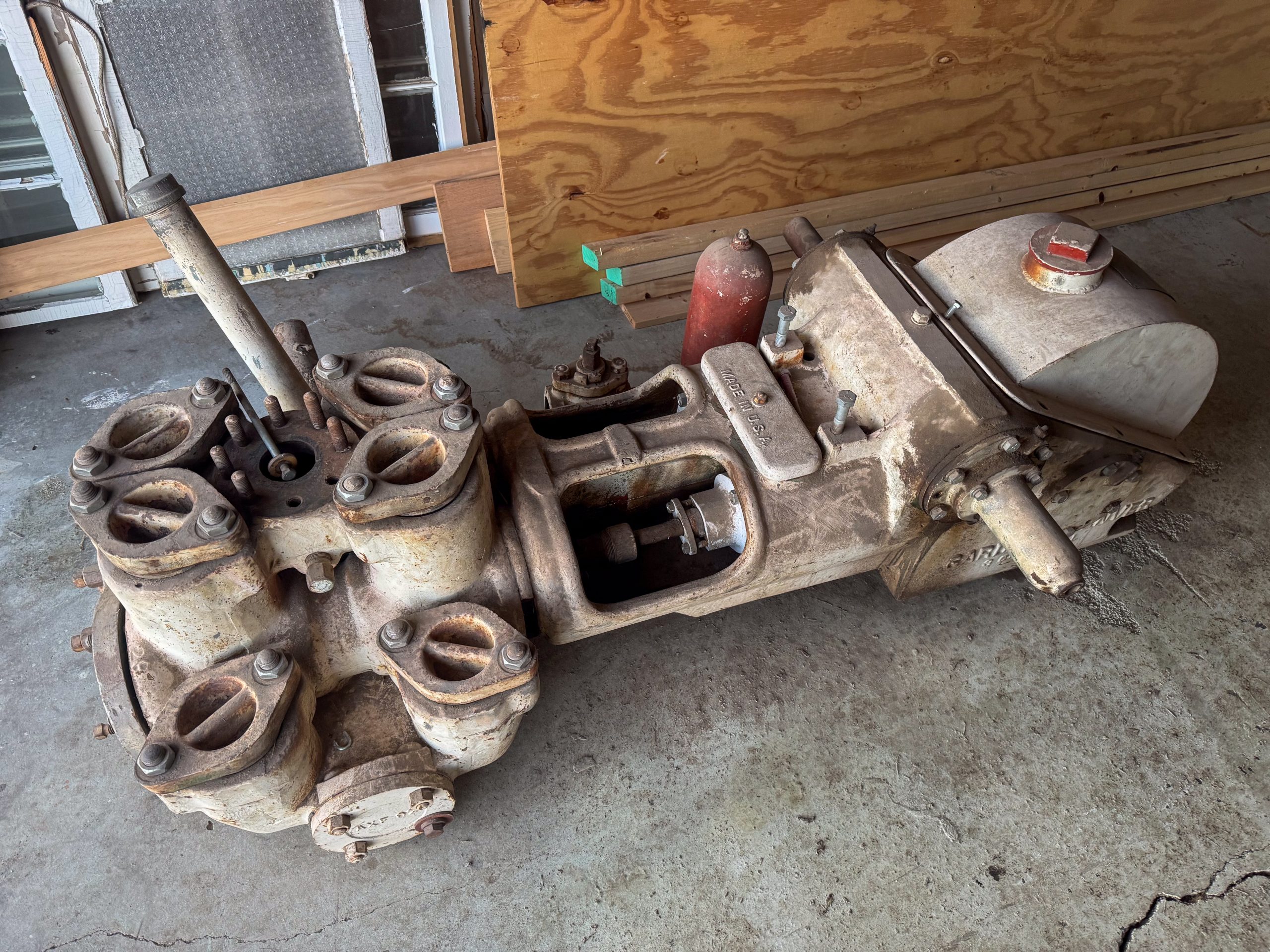

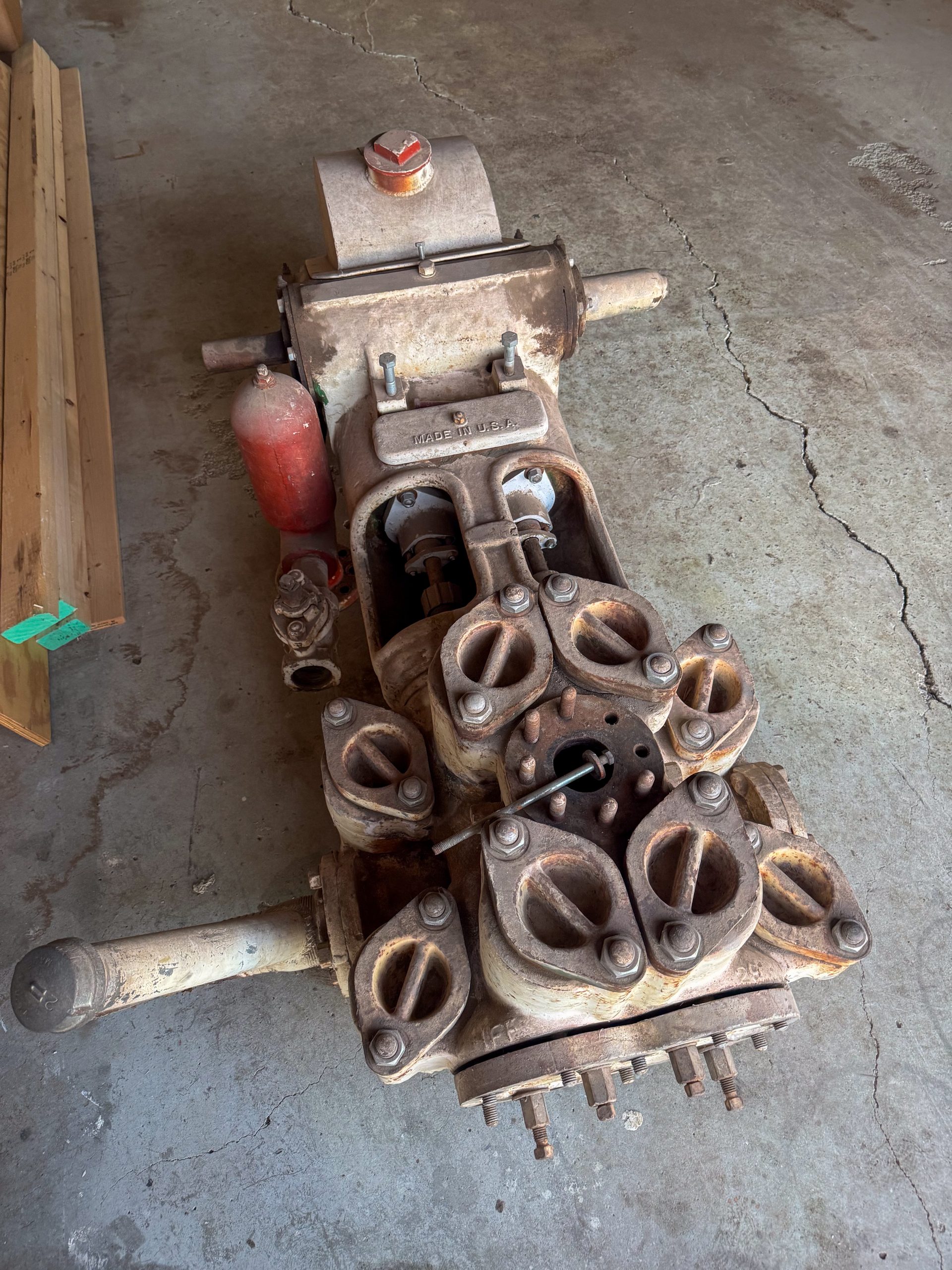

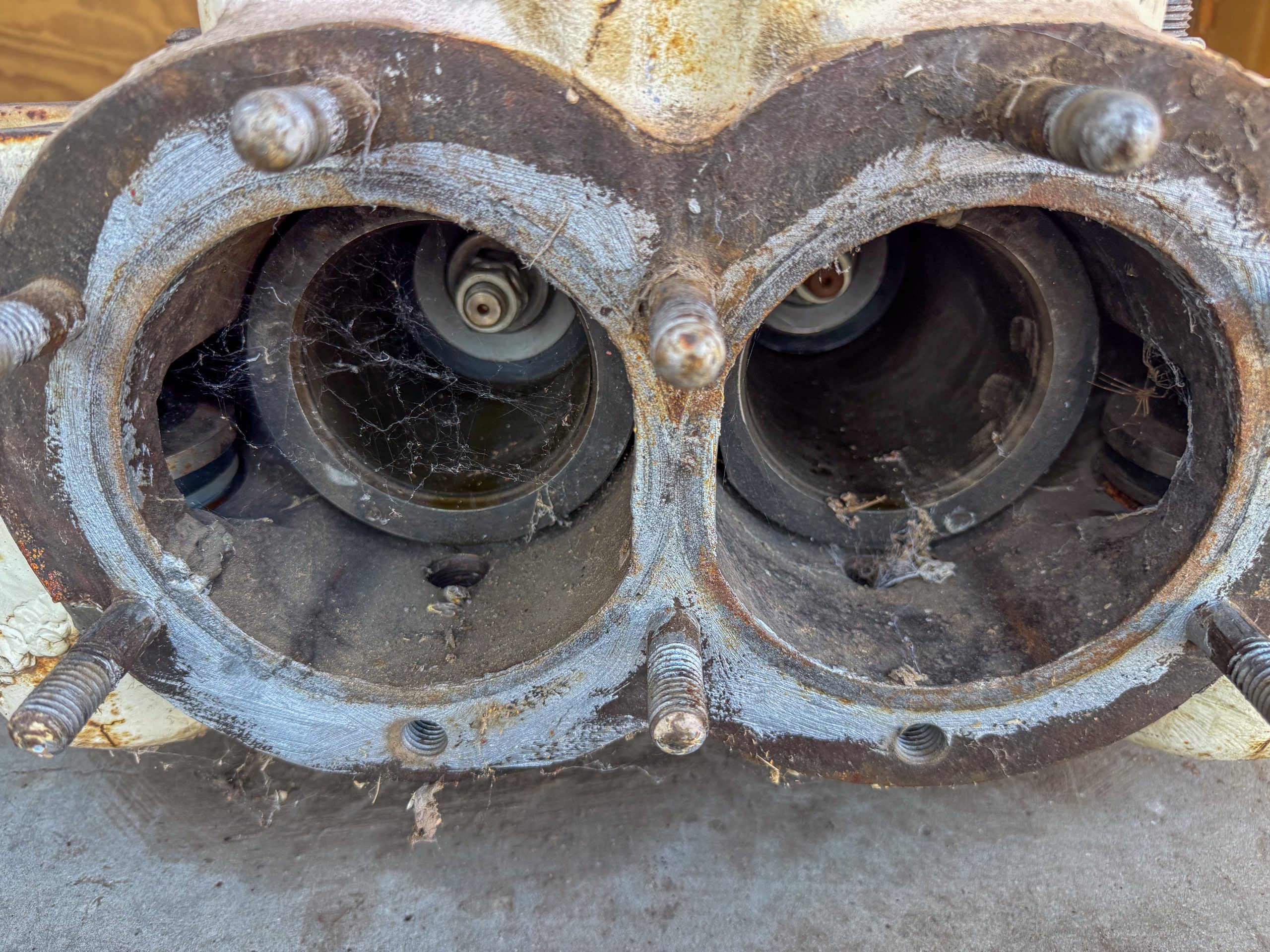

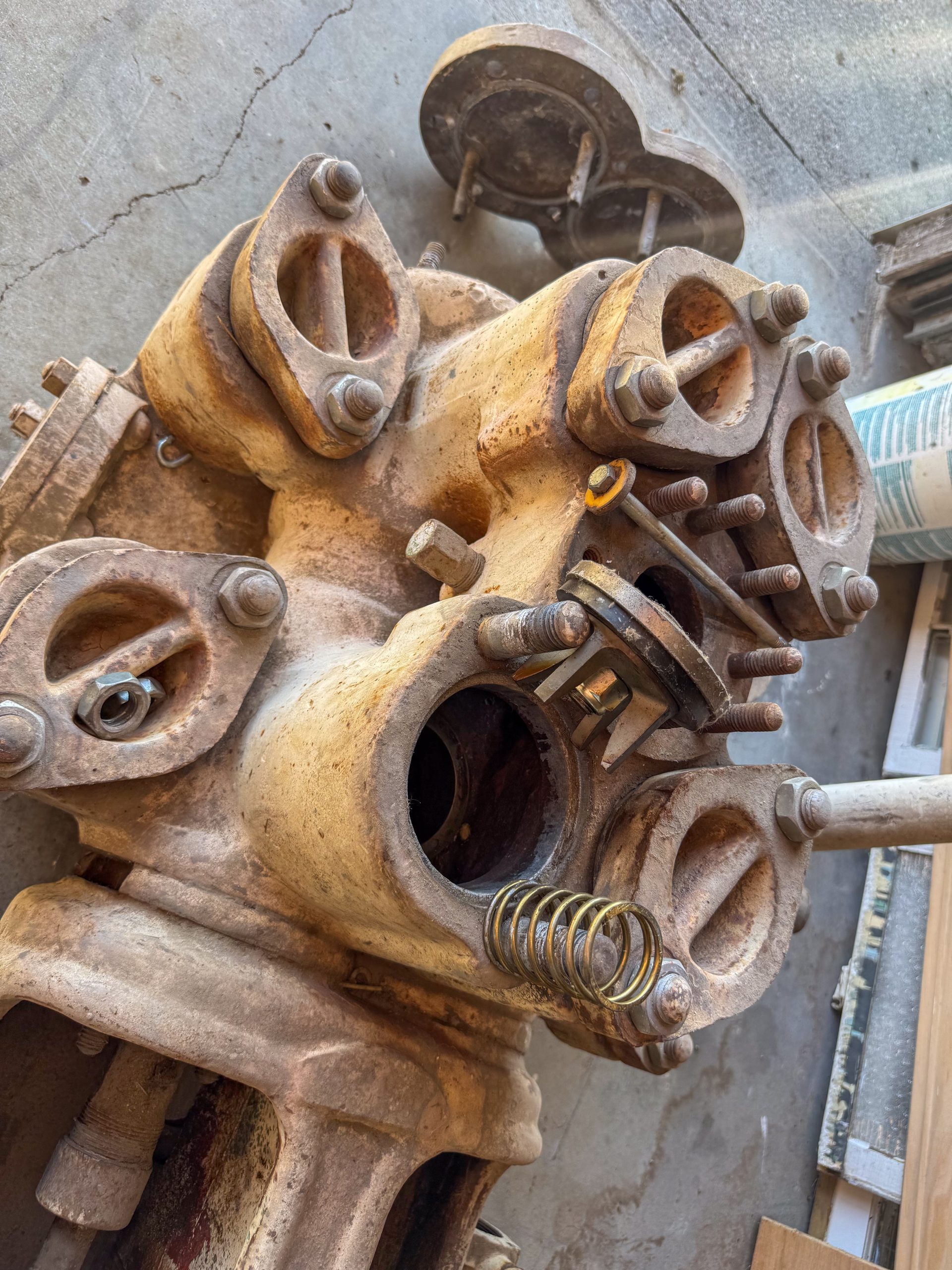

The Gardner Denver FXF Pump is a duplex power pump, known across the drilling and industrial sectors for its rugged reliability and straightforward maintenance. This specific unit has undergone a comprehensive professional restoration, with both the gear end and the fluid end fully rebuilt, ensuring it delivers like-new performance on your next project.
Whether you are managing drilling fluids in a mud program or handling high-pressure water for industrial service, the FXF is engineered to endure. With a 3,140 lb. piston rod load and a 5-inch stroke, this pump provides the consistent displacement needed for demanding applications. Its compact footprint (approx. 67″ x 30″) makes it an ideal candidate for tight rig configurations or portable skid-mounted setups.
This Gardner Denver FXF Pump is outfitted with standard equipment designed for immediate integration, including a double-extended jackshaft for flexible drive configurations and a sturdy wood skid for transport.
- Type: 2-Piston Duplex Power Pump
- Stroke Length: 5 in. (127 mm)
- Piston Rod Load: 3,140 lbs.
- Weight: ~1,495 lbs.
- Max Jackshaft RPM: 439 (Mud Service) / 537 (Industrial Service)
- Max BHP: 16.2 (Mud Service) / 19.7 (Industrial Service)
- Suction Connection: 2 ½” NPT 125#
- Discharge Connection: 2” NPT 300#
- Jackshaft Extension: 1.94” Diameter
- Standard Internals: Includes rods, pistons, liners, and valves.
ABOUT GARDNER DENVER
From Gardner Denver’s Website:
“For more than a century and a half, Gardner Denver has been a trusted partner for the world’s most demanding and ever-changing compressed air, pressure and vacuum needs.
Equipped with the industry’s widest product breadth, Gardner Denver is an expert in diverse applications. By choosing Gardner Denver, you are becoming a part of a legendary brand that has more products in more applications than anyone else.
Gardner Denver is a leading provider of mission-critical flow control and compression equipment and associated aftermarket parts, consumables and services, which it sells across multiple attractive end-markets within the industrial, energy and medical industries. Its broad and complete range of compressor, vacuum and blower products and services, along with its application expertise and over 160 years of engineering heritage, allows Gardner Denver to provide differentiated product and service offerings for its customers’ specific uses. Gardner Denver supports its customers with sales, service and technical support through an extensive network of factory-trained and authorized local distributors.”
