DESCRIPTION
The Econo-Grouter Model Viper 1 has an AMCI 5″ x 10″ piston pump, a 60 gal hopper with a mixing paddle, and a Hopper marked at 6 gal increments. For more specifications, look below. To request a quote, please click the “request a quote” button and you will be contacted shortly with pricing and availability.
SPECIFICATIONS
AMCI 5″ x 10″ piston pump

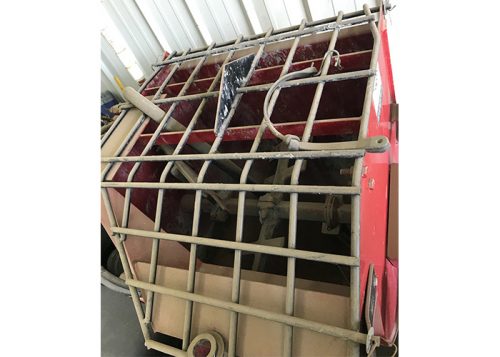

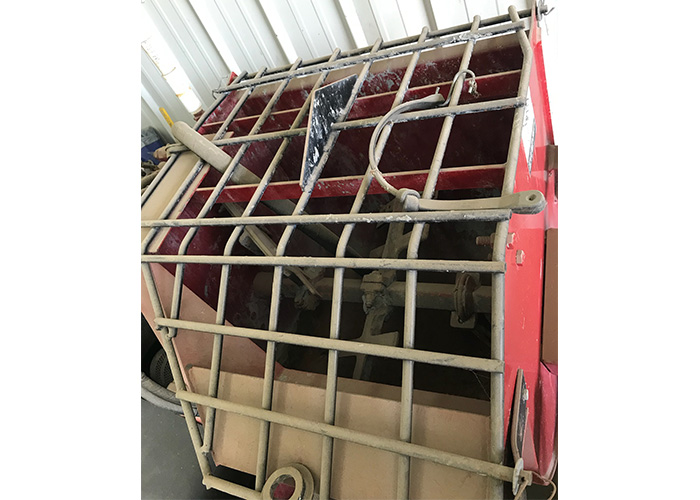

60 gal hopper with mixing paddle
Hopper marked at 6 gal increments
ASA hydraulic cooler, 14″ electric fan, 120° thermostat controlled (optional)
10HP Tecumseh engine (electric start)
15 gal hydraulic tank, oil level and temperature gauge
3 gpm at 45psi wash-down pump (12v)
ACE 1-1/2 x 1 centrifugal water fill pump with 60 psi wash-down system
Haldex hydraulic pump system
20ft 1″ HP Tremey hose
15ft 1/2″ washdown hose with spray nozzle
35gpm up to 325psi discharge, or 48 gpm at 625psi.
48″L x 43″W x 46″H w/ 42″ working height
No tear down for clean-up
Mounted on 2×5 tubing (fork lift slots)
