DESCRIPTION

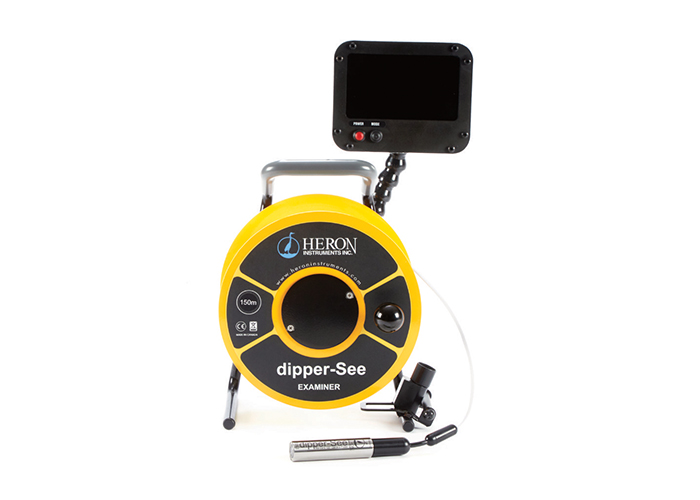

The Heron dipper-See EXAMINER is a robust, cost effective, vertical downhole inspection camera. Designed with portability in mind, the Dipper-See Examiner is a self-contained unit is ideal for viewing in wells, drains, vertical shafts, open bodies of water, boreholes and narrow tubes from 25mm (1″) diameter.
The adjustable positioning arm, conveniently attached to the frame, offers an ergonomic solution for adjusting the monitor for viewing the HD display screen at different angles and lighting conditions. The built-in hanger on the frame can support the unit at the top of the well, allowing for hands-free viewing while in the field.
FEATURES AND ACCESSORIES
• See-120 Camera Probe – 25mm (1″) diameter, 316 marine grade, fully pressure rated, field replaceable
• Lens – robust, scratch resistant clear sapphire
• LED Lights – 7 ultra-bright
• Monitor – resolution 500TVL 17.78cm (7″), full colour, rated IP65 and should be covered during wet or inclement weather
• Adjustable Positioning Arm – attached to the frame, a solution for adjusting the monitor for viewing in various lighting conditions.
• Batteries (x2) – removable, rechargeable lithium ion, up to 5 hours (3200mAh) per battery
• Charger – plug type A, AC Input, compact, portable
• DVR – records video and audio feed
• SD Card – removable for transferring files to computer
• Microphone – 3.5mm jack, for audio voice over
• Centralizer – removable, centers and stabilizes camera probe in well
• Retrieval Hook – for light weight items
• Monitor Visor – for glare free viewing
• Hanger and Tape Guide – built-in, to support the unit at the well head and protect the tape from sharp edges
• Tape – polyethylene, 4 conductors, marked every meter or foot
• Super Tough, Wheeled Case – to transport and protect your investment from the elements
ABOUT HERON INSTRUMENTS INC
Fron Heron Instruments’ Website:
“Heron Instruments is committed to designing and manufacturing high quality water level monitoring systems. We’ve developed a broad range of water level measuring instruments to measure and continually monitor changes in the water table level. We continue to devote resources into R&D to expand and improve our water level instrument line and enhance customer satisfaction.
Heron Instruments Inc. began manufacturing the H.OIL oil/water interface meter in 1995, and then quickly added a variety of groundwater monitoring instruments to our product line. Heron has grown from a two person home based business to a company operating out of an expansive building that accommodates approximately 16 full and part time employees.
We also support our local University and Colleges by participating in their Co-op and Internship programs. We are very pleased with the new and fresh ideas these students have brought us in the area of programming and product design, and we look forward to adding another student in our machining area.
Our new larger location allows for the manufacturing and servicing of all Heron products with greater efficiency and quicker delivery times, while still maintaining the company’s dedication to excellence. We expanded our in house manufacturing by adding a CNC, milling and etching machine, which will allow for further innovation and design of new Heron products.
Heron is affiliated with various related associations. Through participation in these groups, we maintain both a prominent profile in the industry and participate in trade shows, discussions and programs to keep us informed about changing legislation that impact all industry players.
Heron’s goal is to provide customers with accurate, reliable, environmentally safe and fairly priced groundwater monitoring equipment.”
