DESCRIPTION

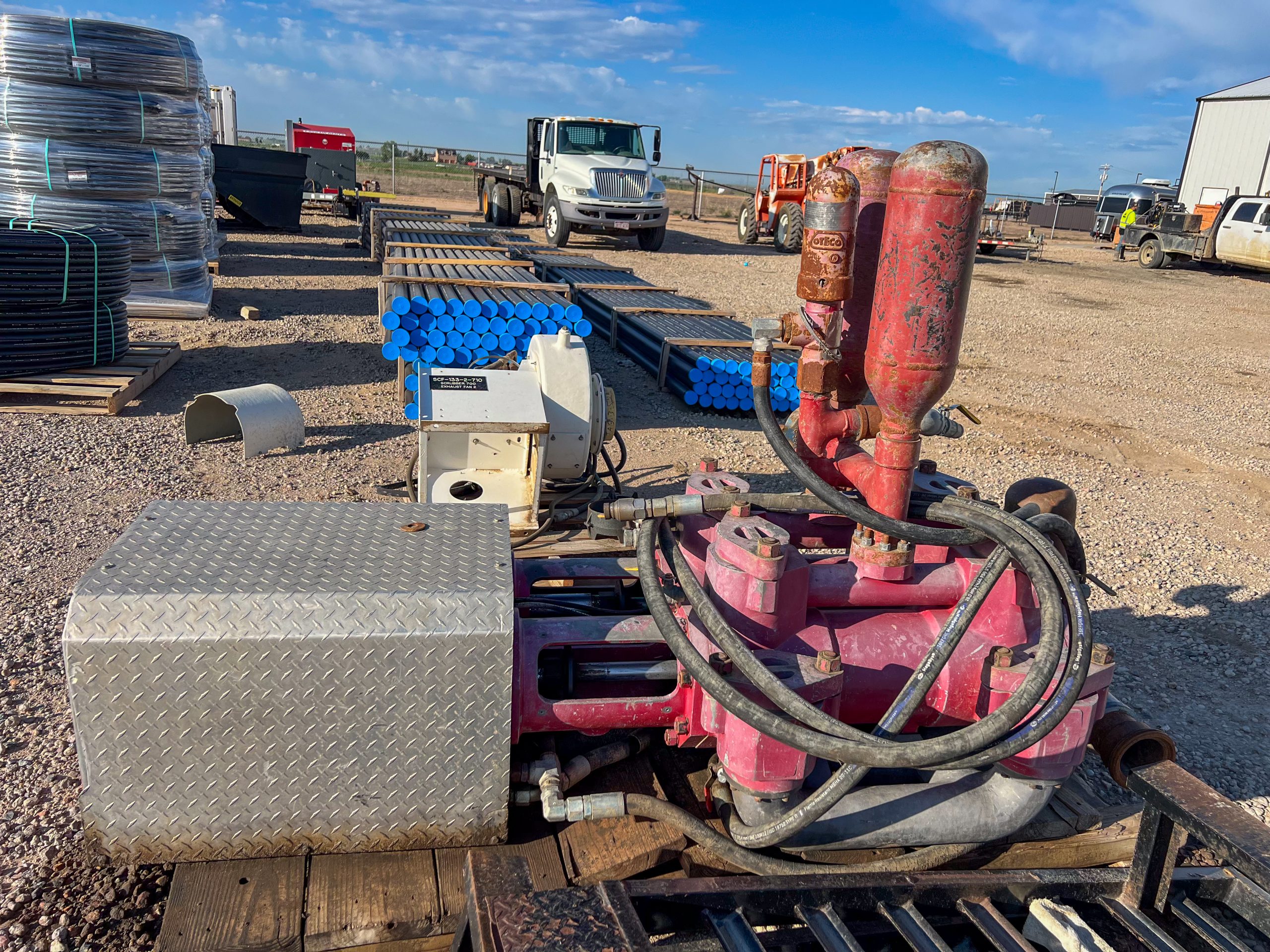

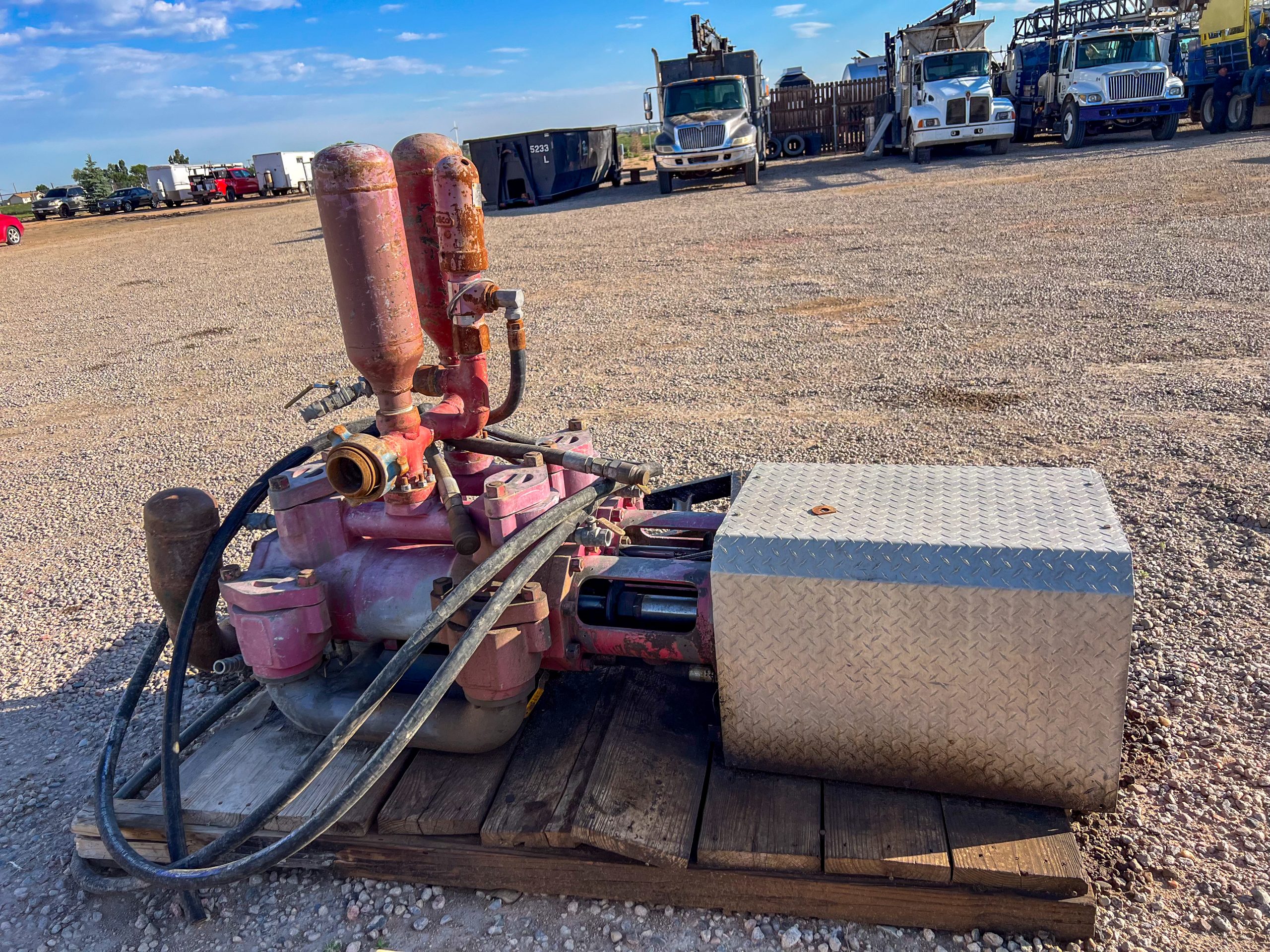

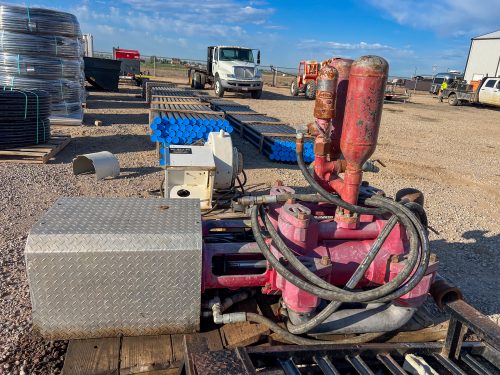

This Centerline Duplex Mud Pump is in excellent used condition, recently outfitted with new fluid and expendables, ensuring it’s ready for immediate deployment.
Designed for superior performance, the CLM 7½” x 10″ Duplex Hydraulic Mud Pump offers remarkable advantages over conventional pumps. It delivers twice the rated flow at almost three times the pressure of a standard 5″ x 6″ pump, yet weighs half as much and is significantly more compact. Compared to a 5½” x 8″ pump, the CLM Duplex pumps 35% more fluid at over twice the rated pressure. Its efficient design means a single CLM 7½” x 10″ duplex pump, at just 1,350 lbs, can match the combined rated pressure and volume of six 5″ x 6″ pumps (each lined with 3″ liners, totaling 13,980 lbs)!
Key Specifications:
- Displacement: 300 GPM
- Pressure: 800 PSI
- Strokes per Minute: 40
- Dimensions: 77.3″ (L) x 34″ (W) x 32″ (H)
- Weight: 1,350 lbs
This Centerline Duplex Mud Pump is the ideal solution for operations demanding high flow and pressure from a compact, lightweight, and incredibly efficient package.
ABOUT CENTERLINE MANUFACTURING
From Centerline’s Website:
“Since 1983, Centerline Manufacturing has been involved in the design, manufacture, and production of drilling equipment, support equipment, and tooling for the water well industry. When you need a mud pump built with a “get the job done attitude”, consider Centerline Manufacturing’s line of hydraulic mud pumps. Through expert design and acute attention to detail, Centerline Manufacturing’s aim is to maintain top of the line mud pumps, which perform beyond the highest expectation of the customer.”
