DESCRIPTION
The Geawelltech Well Drill 3050CR was manufactured in 2009 and is in perfect condition. The Geawelltech Well Drill 3050CR has 3,730 hrs and comes with turnkey drilling.
GEAWELLTECH’S WellDrill 3050 CR well drilling rig is designed for all down-thehole (DTH) drilling applications. It is mounted on a versatile crawler track platform with high ground clearance and 360-degree rotation, which makes this unit exceptionally well suited to working in restricted spaces. Ten degrees of chain feeder tilt – forward, backward and sideways – make the unit very useful on undulating ground. It is supplied as standard with wide, heavy-duty rubber tracks that minimize soil disturbance. The chain feeder has a stinger mounting that permits vertical movement of the feeder.

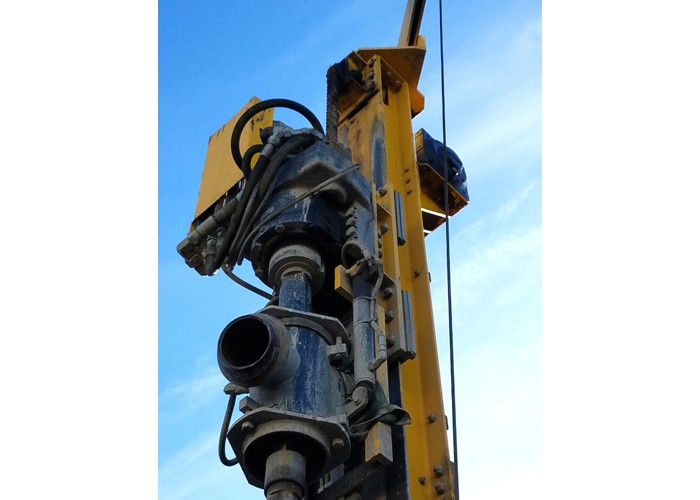

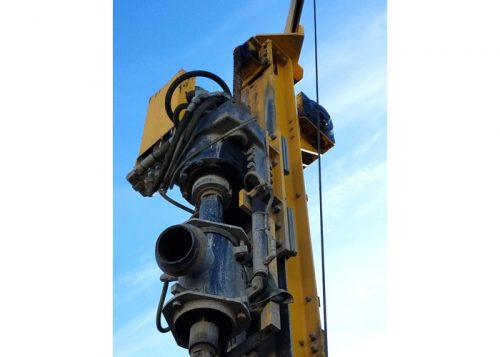

The rotator assembly is an Atlas Copco DHR 48H56, driven by two hydraulic motors, with drill bit sub coupling for 2 3/8” API Reg box thread. A control valve allows the hydraulic motors to be operated in series or in parallel. An ODEX 115/140 casing shoe is mounted on the sled and is equipped with hydraulic advance.

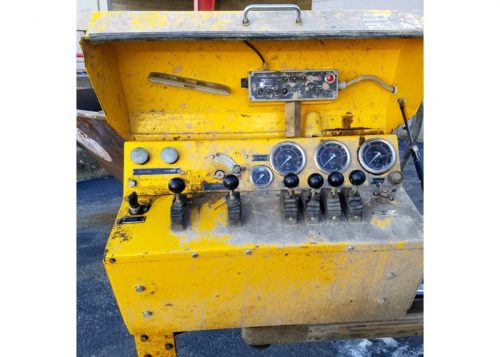

The entire drilling rig has been designed to give service technicians easy access to all components. All hoses are neatly and logically arranged on hose ladders and marked to give a clear overview of the hydraulic system. The direct-acting hydraulic system has radio control of movement functions. The drilling control panel is mounted on a hydraulic swinging arm, with duplicate controls for positioning. A side panel provides controls for the drilling machine chain feeder, pipe rack, stinger advance and other cylinder movements, as well as welding and water pump controls. The side panel also has duplicate controls for moving the machine.
For technical specifications, please request a quote.
INCLUDED
- 540’ of 2 3/8” REG Drill Rod
- 6” and 4” Hammers (6” comes with 2 Symmetrix bits)
- Stabilizer
- Blow Off Hoses (from top head to dumpster)
- Dumpster Cans
- Air Hoses
- Extra parts
ABOUT ATLAS COPCO
Atlas Copco acquired Geawelltech in 2014. To read more, click here.
Atlas Copco (Copco from Compagnie Pneumatique Commerciale) is a Swedish industrial company that was founded in 1873. It manufactures industrial tools and equipment.
The Atlas Copco Group is a global industrial group of companies headquartered in Nacka, Sweden. In 2017, global revenues totaled SEK 86 billion, and by the end of that year the company employed about 34,012 people. The company manufactures products at about 100 production sites in more than 20 countries. As of 2016, the United States is the company’s largest single market, followed by China. The firm’s shares are listed on the OMX Stockholm exchange and both ‘A’ and ‘B’ classes form part of the benchmark OMXS30 index.
Atlas Copco companies develop, manufacture, service, and rent industrial tools, air compressors (of which it is the world’s leading producer), construction and assembly systems. The Group operates in four areas: Compressor Technique, Vacuum Technique, Construction Technique and Industrial Technique.
For more information and pricing, please request a quote.
