DESCRIPTION

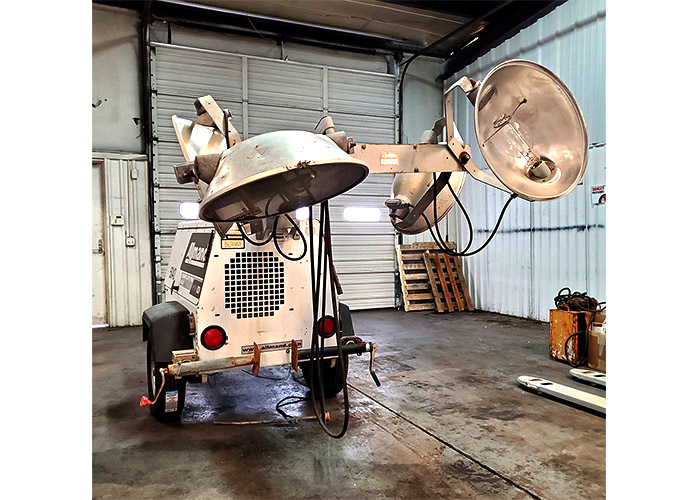

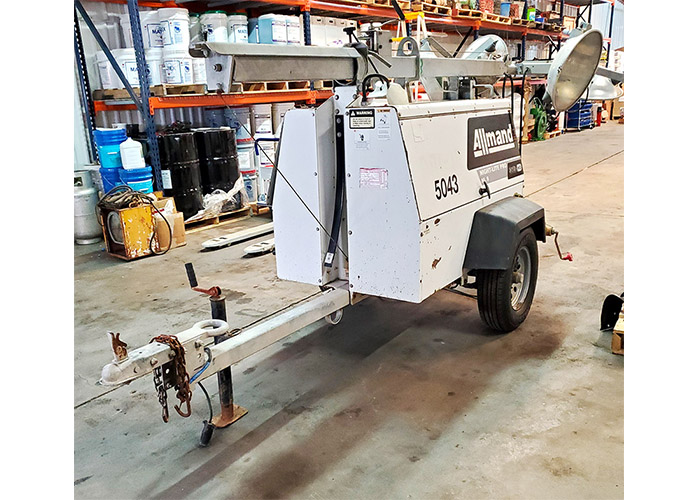

The 8000KW Mining Grade Generator Light Tower is refurbished. This 8000KW Mining Grade Generator Light Tower is located in Tulsa, Oklahoma and is ready to be shipped or delivered. Please request a quote for more information.
SPECIFICATIONS
| 8000KW Mining Grade Generator Light Tower | Features |
| Genset Specs: | Kubota Genset |
| Engine:Â Kubota D1105-E4BG1 | 44.9 Gallon Fuel Cell |
| Engine Type:Â 4 Cycle Water Cooled Diesel | Up to 60+ Hours Continuous Operation |
| Engine Speed:Â 1800 RPM | External Grounding |
| No. of Cylinders:Â 3 | Low Oil, High Engine Temp Auto Shut-Off |
| Generator: 8000W Mecc Alte LT3N-130/4 | Hour Meter – Alternator Warning |
| Voltage:Â 240V 1PH, 60Hz | High Output MH Lamps |
| Battery 12V | 440,000 Total Lumen Output |
| Fuel Cell Capacity:Â 44.9 Gallons | Independently Adjustable Light Heads |
| Runtime:Â 60+ Hours | Individual Light Switch Circuit Breakers |
| Noise Level:Â 72 dBA @ 23 ft | 110 Lumens Per Watt Efficiency |
| Steel Trailer w/ Industrial Grade Paint Finish | |
| Light Mast Specs: | Four Point Outrigger System |
| Mast Type:Â Manual Crank-Up | Withstands 44.7 Mph Winds at Full Extension |
| Boom Height:Â Up to 30′ | |
| Materials:Â Galvanized Steel | |
| Operation:Â Manual Hand Crank Winch | |
| Winch:Â 2500lb, Self-Braking | |
| Stages:Â Three | |
| Light Specs: | |
| Lamp Type:Â Metal Halide | |
| Lamp Qty:Â 4 | |
| Total Lumens:Â 440,000 (110,000 per lamp) | |
| Luminous Efficacy: 110 lm/w | |
| Color Temperature:Â Neutral White – 4100K | |
| Life Expectancy:Â 20,000 hours | |
| Coverage:Â 6 to 7 Acres | |
| Trailer Specs | |
| Materials:Â 14ga Sheet Steel Enclosure | |
| Hitch:Â 2″ Ball / Pintle Combo | |
| Finish:Â Industrial Grade Paint | |
| Axle:Â (1) 2,000 lb | |
| Suspension:Â Leaf Springs | |
| Outriggers:Â (4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling Jacks | |
| Lighting:Â DOT Approved tail, side, brake, and directional lights | |
| Wheels:Â (2) 14″ Steel Rims | |
| Tires:Â Regular | |
| Dimensions:Â 171.6″ x 56.29″ x 57.08″ | |
| Weight:Â 2116.4 lb | |
| Shipping Weight:Â – |
